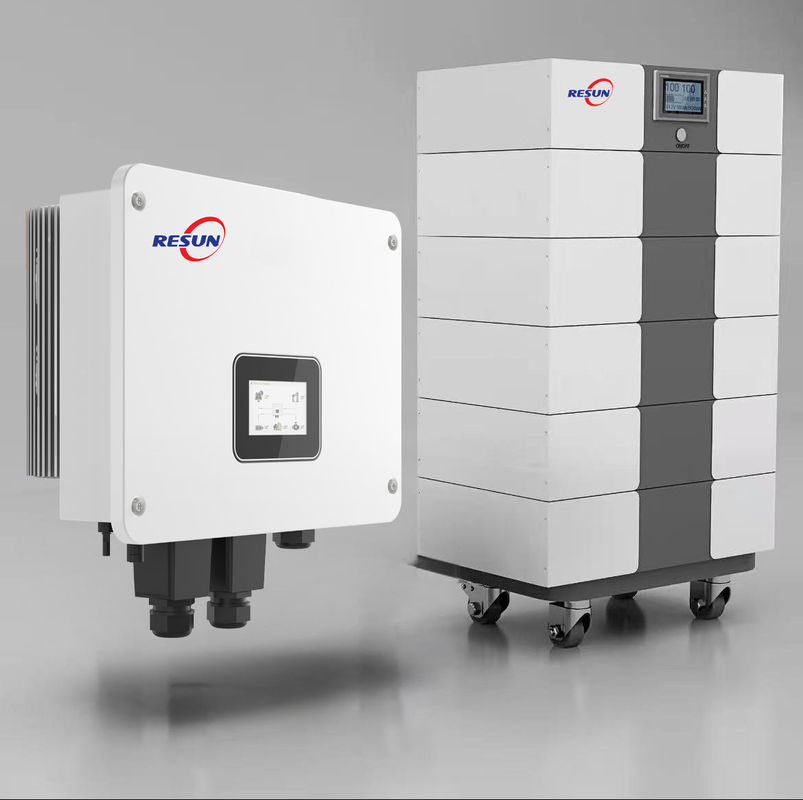

Intelligent Control Hybrid Inverter 4.6KW for Household Energy Storage

Name: Intelligent Control Hybrid Inverter 4.6KW for Household Energy Storage
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: R-4.6KSL
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011
Model Number:	R-4.6KSL

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011

Model Number:

R-4.6KSL

Model:

R-4.6KSL

Power Rating:

4.6 KW

Max Efficiency:

98%

Operating Temperature Range:

-25 To 60°C

Battery Compatibility:

Lead-acid / Li-ion / User-defined

Rated Battery Voltage:

48V (minimum Start-up Voltage 44V)

Cooling Method:

Natural Convection

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

100~430Vdc，16A+16A

Communication Interfaces:

RS485 / CAN / USB / Dry Contact，Wi-Fi / GPRS

Certifications:

ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011

Warranty:

5 Years

Highlight:

High Light

Highlight:

Intelligent Control Hybrid Inverter

Hybrid Inverter 4.6KW

Household Energy Storage Hybrid Inverter

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

4.6KW Household Hybrid energy Storage Intelligent Control Inverter

• Efficient conversion of renewable energy, with overload and short circuit protection.
• Compatible with multiple types of batteries, freely switching between grid connected, off grid, and hybrid modes.
• Support remote monitoring and real-time viewing of power generation and consumption data through the APP.

KEY STRENGTHS

• AI Algorithm-Optimized Battery Thermal Management System

• Support intelligent load management (customized)

• Support three-phase and multi-machine parallel connection

• Support BMS remote upgrade function (customized)

Description

Model		R-4.6KSL
PV input data
Max. PV input power (kW)		6.9
Max. PV input voltage (V)		550
Start-up voltage (V)		100
MPPT voltage range (V)		100~430
Rated PV input voltage (V)		360
No. of MPPT trackers		2
No. of strings per MPPT tracker		1/1
Max. input current per MPPT (A)		16/16
Max. short-circuit current per MPPT (A)		24/24
Battery input data
Battery type		Lithium-ion / Lead-acid
Max. charge / discharge power (kW)		4.6
Battery voltage range (V)		40~58
Rated battery voltage (V)		48
Max. charging / discharging current (A)		92/92
Rated charge / discharge current (A)		92/92
Battery charging strategy		Self-adaption to BMS
BMS communication		CAN
AC output data (grid side)
Rated output power (kW)		4.6
Max. apparent output power (kVA)		4.6
Max. apparent input power(kVA)		4.6
Rated grid voltage (V)		230
Grid voltage range (V)		176~270
Grid input voltage (V)		230
Rated grid frequency (Hz)		50/60
Grid frequency range(Hz)		47~61
Rated output current (A)		20
Max. AC output current (A)		20
Max. apparent input current (A)		20
Power factor		>1 (0.8 leading ~ 0.8 lagging)
Max. grid passthrough current(A)		30
THDi		<3%
Grid type		L+N+PE
AC output data (back-up)
Rated output power (kW)		4.6
Max. apparent output power (kVA)		4.6
Rated output voltage (V)		230
Rated output frequency (Hz)		50/60
Rated output current (A)		20
Max. AC output current (A)		20
Peak output power		≥110%, 10mins; ≥120%, 1min; ≥130%, 1s; ≥150%, 100ms
Back-up switch time (ms)		<20
THDu		<3%
Protection
Supported protection		PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection
Surge protection		DC Type III / AC Type III
Over voltage category		DC Type III / AC Type III
Certiﬁcations and standards
Certiﬁcates		ENIEC 61000-6-1:2019, EN IEC 61000-6-3:2021; EN 62109-1:2010; EN 62109-2:2011
General data
Ingress protection		IP65
Operating temperature range (℃)		-25~+60
Cooling		Natural convection
Relative humidity		0-95% (non-condensing)
Operating altitude (m)		0~2,000(derating over 2,000)
*Dimensions WDH (mm)*		476×215×477 (without generator port); 476×215×510 (with generator port)
Weight (kg)		20.5 (without generator port); 20.7 (with generator port)
Topology (solar / battery)		Transformerless / Transformerless
Noise emission (dB)		<35
PV connection terminals		MC4
Display and communication
Display		LCD
Communication		RS485/CAN
