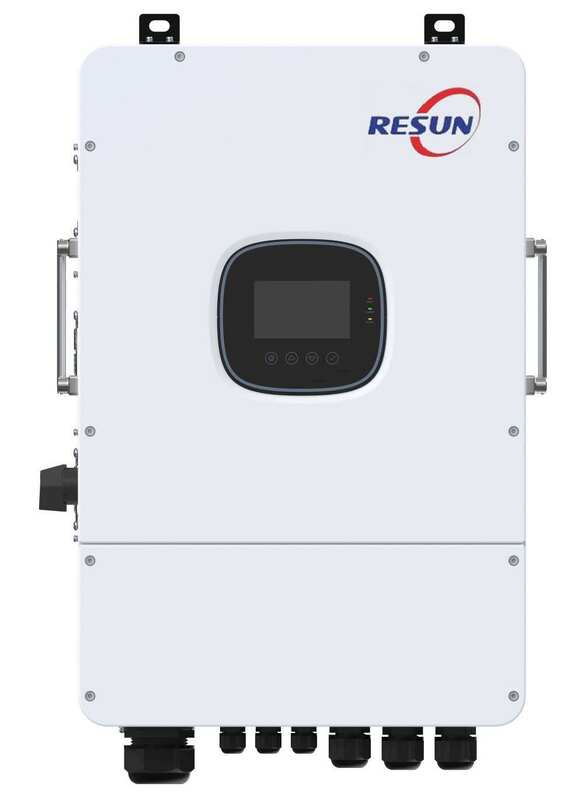

12kW low-noise three-phase hybrid inverter with multiple protections

Name: 12kW low-noise three-phase hybrid inverter with multiple protections
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: R-12K-TH
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC61000-3-12; EN 62109-1, EN 62109-2; EN50549-1; EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; Rfg:2016/NC Rfg:2018/PTPiREE:2021; NRS 097-2-1:2017; Hungary; NTS V2.1:2021-07&UNE21700
Model Number:	R-12K-TH

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC61000-3-12; EN 62109-1, EN 62109-2; EN50549-1; EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; Rfg:2016/NC Rfg:2018/PTPiREE:2021; NRS 097-2-1:2017; Hungary; NTS V2.1:2021-07&UNE21700

Model Number:

R-12K-TH

Model:

R-12K-TH

Power Rating:

12KW

Max Efficiency:

98%

Operating Temperature Range:

-25~60℃

Battery Compatibility:

Lead-acid / Li-ion / User-defined

Rated Battery Voltage:

150~550V

Cooling Method:

Natural Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

180~850V, 18A+18A

Communication Interface:

Communication With RS485/Wifi/GPRS/CAN/DRM

Certifications:

Warranty:

5 Years

Highlight:

High Light

Highlight:

12KW Three Phase Hybrid Inverter

3 Phase Hybrid Inverter 12KW

RS485 Three Phase Hybrid Inverter

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

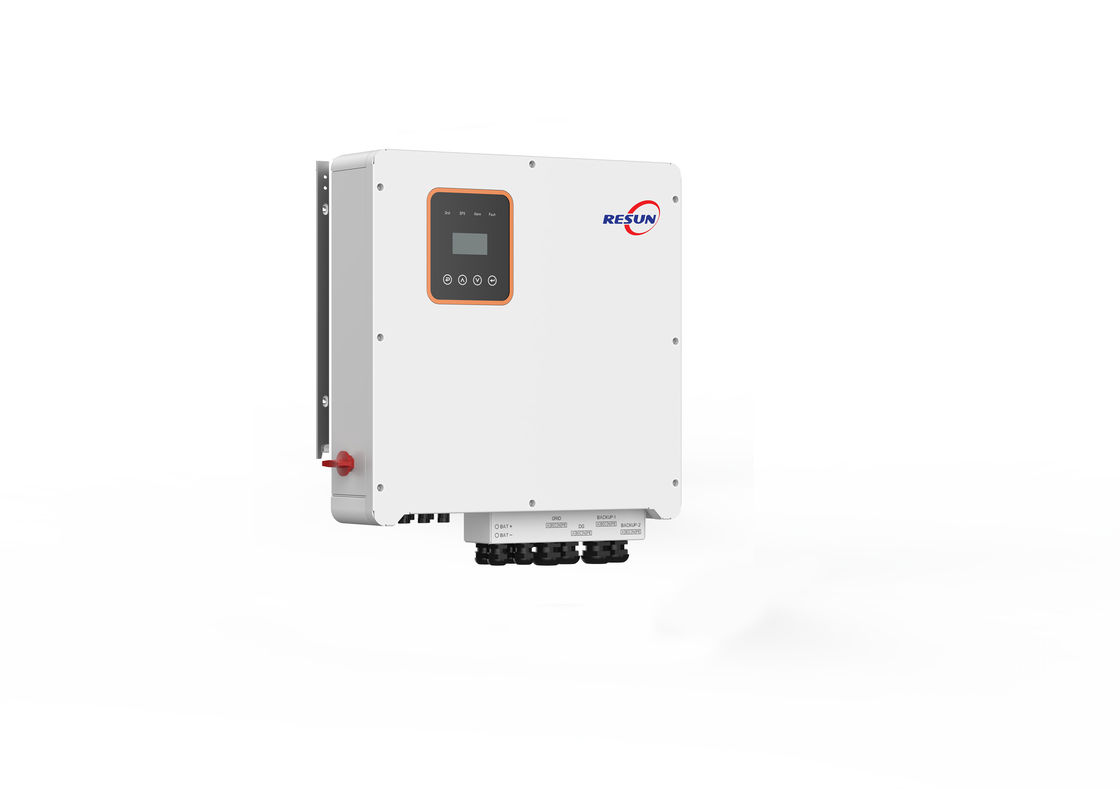

12kW low-noise three-phase hybrid inverter with multiple protections

• Support high-voltage power input and output to meet the power demand of high-power equipment.
• Specially designed for three-phase systems, with stable output and ensuring electrical continuity.
• Low noise design, quiet and undisturbed operation, suitable for noise sensitive scenes.

KEY STRENGTHS

• Support BMS (RS485) remote upgrade.

• Compatible with single-phase and three-phase loads.

• charge and discharge management.

• Support high power components.

Description

Model	R-12K-TH
PV input data
Max. PV input power (kW)	18
Max. PV input voltage (V)	1000
Min. PV input voltage (V)	125
Start-up voltage (V)	125
MPPT voltage range (V)	180~850
MPPT voltage range@full-load (V)	250~850
Rated PV input voltage (V)	600
No. of MPPT trackers	2
No. of strings per MPPT tracker	1/1
Max. input current per MPPT (A)	18/18
Max. short-circuit current per MPPT (A)	25/25
Battery input data
Battery type	Lithium-ion / Lead-acid
Max. charge / discharge power (kW)	13.2
Battery voltage range (V)	150-550
Battery voltage range@full-load (V)	340-550
Max. charging / discharging current (A)	50/50
Rated charge / discharge current (A)	40/40
Battery charging strategy	Self-adaption to BMS
BMS communication	CAN
AC output data (grid side)
Rated output power (kW)	12
Max. apparent output power (kVA)	13.2
Max. apparent input power(kVA)	26.4
Rated grid voltage (V)	220 / 380; 230 / 400
Grid voltage range (V)	187~264.5
Grid input voltage (V)	380; 400
Rated grid frequency (Hz)	50/60
Grid frequency range(Hz)	45-55 / 55-65
Rated output current (A)	17.3
Max. AC output current (A)	19.1
Power factor	>0.99 (0.8 leading ~ 0.8 lagging)
THDi	<3%
Grid type	3L+N+PE
AC output data (back-up)
Rated output power (kW)	12
Max. apparent output power (kVA)	13.2
Rated output voltage (V)	220 / 380; 230 / 400
Rated output frequency (Hz)	50/60
Rated output current (A)	17.3
Max. AC output current (A)	19.1
Peak output power	≥110%, 10mins； ≥120%, 1.25min； ≥150%, 20ms
Back-up switch time (ms)	<10
THDu	<2%
Protection
Supported protection	PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Battery reverse protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection
Over voltage category	DC Type II / AC Type III
Certiﬁcations and standards
Certiﬁcates	IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC61000-3-12; EN 62109-1, EN 62109-2; EN50549-1; EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; Rfg:2016/NC Rfg:2018/PTPiREE:2021; NRS 097-2-1:2017; Hungary; NTS V2.1:2021-07&UNE217002:2020&UNE217001:2020; NA/EEA-NE7 – CH 2020; OVE Directive R 25:2020, TOR Erzeuger Type A V1.2; TR3.3.1:2019;ANRE228; ANRE228; NA/EEA-NE7; PPDS:2022 for A1&A2; RS 097-2-1 :2017; OVE Directive R 25:2020, TOR Erzeuger Type A V1.2; EIFS 2018:2
General data
Ingress protection	IP65
Operating temperature range (℃)	-25~+60
Cooling	Natural cooling
Relative humidity	0-95%
Operating altitude (m)	4000(>2000 power derating)
*Dimensions WDH (mm)*	566 x 593.5 x 219.5
Weight (kg)	32
Topology (solar / battery)	Transformerless / Transformerless
Noise emission (dB)	<45
Display and communication
Display	Monochrome screen
Communication	RS485,CAN,WiFi
