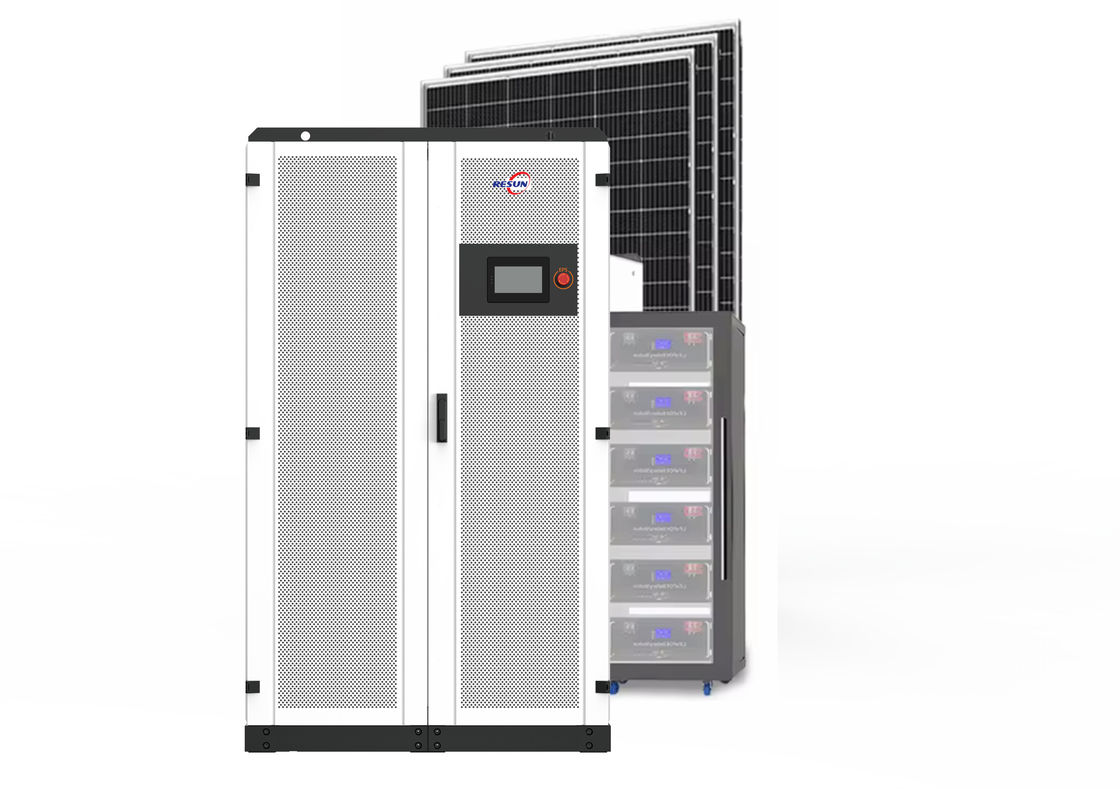

150KW Microgrid Inverters With RS485 / CAN Communication InterfaceInterface

Name: 150KW Microgrid Inverters With RS485 / CAN Communication InterfaceInterface
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: RPS-150K-MG
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
Model Number:	RPS-150K-MG

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105

Model Number:

RPS-150K-MG

Model:

RPS-150K-MG

Power Rating:

150KW

Max Efficiency:

98%

Operating Temperature Range:

-30 ~ 55℃

Battery Compatibility:

Lead-acid / Li-ion / User-defined

Rated Battery Voltage:

420~850V

Cooling Method:

Air Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

1000V,120-240A

Communication InterfaceInterface:

RS485/Wifi/GPRS/CAN/DRM

Certifications:

EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105

Warranty:

3 Years

Highlight:

High Light

Highlight:

150KW Microgrid Inverters

RS485 Microgrid Inverters

CAN Microgrid Inverters

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

150KW Microgrid inverters supporting flexible strategies

• This microgrid inverter supports parallel operation of multiple machines, making it easy for multiple devices to work together, greatly improving the overall power supply capacity and stability of the system. Whether it is a small distributed power station or a large industrial microgrid project, it can be flexibly adapted to meet the diverse electricity needs of various scenarios.
• Having the strong ability to cope with 100% unbalanced loads, it can still ensure the stability of output voltage and power quality in complex electrical environments, effectively reducing the damage caused to equipment by load imbalance, ensuring the normal and efficient operation of various electrical equipment, and reducing the occurrence rate of faults.
• Highly integrated photovoltaic modules can seamlessly integrate various photovoltaic modules, achieving efficient collection and conversion of photovoltaic energy. At the same time, equipped with advanced intelligent control system, it supports flexible strategy adjustment, can automatically optimize working mode based on real-time changes in light intensity, electricity load, etc., improve energy utilization efficiency, and create more value for users.

KEY STRENGTHS

• Integrated PV/MPPT module/transformer/STS and maintenance bypass.

• Support 100% unbalance.

• Support DG load rate control to improve fuel economy.

• Support ﬂexible conﬁguration of control strategies.

MPS PV and battery conﬁguration principles:

1. Boost mode conﬁguration principle - open voltage at low temperature at the limit of PV installation * number of PV panels in series ≤ the lowest voltage of the battery;

2. Buck mode conﬁguration principle - the maximum power operating voltage at the extreme high temperature of PV installation≥ the highest voltage of the battery;

3. The PV and battery conﬁgurations of MPS must comply with the above conﬁguration principles.

Description

Model	RPS-150K-MG
AC(on-grid)
Max. output power (kW)	165
Rated output power (kW)	150
Rated voltage(V)	400
Voltage range (V)	320~460
Rated current (A)	216
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55/55~65
THDi	<3%
Power factor	1leading-1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Max. output power (kW)	165
Rated power (kW)	150
Rated voltage (V)	400
Rated current (A)	216
THDu	≤1% linear; or≤5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term, 120% 1min
PV input
Max. PV input voltage (V)	1,000
Max. PV power (kW)	120/180/240
MPPT module quantity	2/3/4
MPPT voltage range (V)	250~850
Battery
Battery voltage range (V)	420~850
Max. charging power (kW)	120/180/240
General data
*Dimension WDH (mm)*	*12008002050*
Weight (kg)	1250/1280/1310
Operation temperature (℃)	-30 ~ 55
Relative humidity	0 ~95% non-condensing
Ingress protection	IP20
Noise emission (dB)	<70
Operating altitude (m)	<5,000(>3,000 Derating)
Cooling	Air Cooling
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certiﬁcates	EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
