Intelligent Auxiliary High Voltage Battery 20KWh IP65

Name: Intelligent Auxiliary High Voltage Battery 20KWh IP65
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: LV-BT-5.12Aa-4
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	CB, IEC62619, CE-EMC, CE-GPSD, UKCA, UL1973, UL9540A, EN62040, IEC62040; UN38.3, MSDS
Model Number:	LV-BT-5.12Aa-4

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

CB, IEC62619, CE-EMC, CE-GPSD, UKCA, UL1973, UL9540A, EN62040, IEC62040; UN38.3, MSDS

Model Number:

LV-BT-5.12Aa-4

Model:

LV-BT-5.12Aa-4

Warranty:

5 Years

Operating Voltage:

179.2V～224.64V

IP Rating:

IP65

Cycle Life:

6000 Times @80%DOD

Battery Chemistry:

Lithium-iron Phosphate (LiFePO4)

Certifications:

CB, IEC62619, CE-EMC, CE-GPSD, UKCA, UL1973, UL9540A, EN62040, IEC62040; UN38.3, MSDS

Highlight:

High Light

Highlight:

High Voltage Auxiliary Battery

IP65 High Voltage Battery

High Voltage Battery 20KWh

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

20KWh Intelligent high-voltage auxiliary battery

• Equipped with AI power regulation system, real-time matching of electricity load, high-voltage architecture improves energy conversion efficiency by 20%, supports dynamic voltage compensation, and adapts to multi scenario power coordination such as photovoltaics and energy storage.
• Modular stacking structure saves 40% installation space, integrates BMS intelligent management system, automatically monitors battery cell status, and reduces maintenance costs by 30%.
• As an auxiliary unit of the main power supply, it can instantly replenish energy during peak power consumption or switch to standby mode during grid fluctuations. It is compatible with integrated light storage and charging systems, achieving energy dispatch automation.

FEATURES

• High-voltage LiFePO4 battery solution, Single module is 51.2V/100Ah/5.12kWh.

• 3 to 6 layers recommended.

• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety, Life Cycle and Power.

• Applicable on grid or hybrid on and off-Grid solar energy storage system.

Description

Model	LV-BT-5.12Aa-4
Number of layers	4 layers
Energy	20.48KWh
Operating Voltage Range	179.2V～224.64V
Operating Voltage Range	179.2V～224.64V

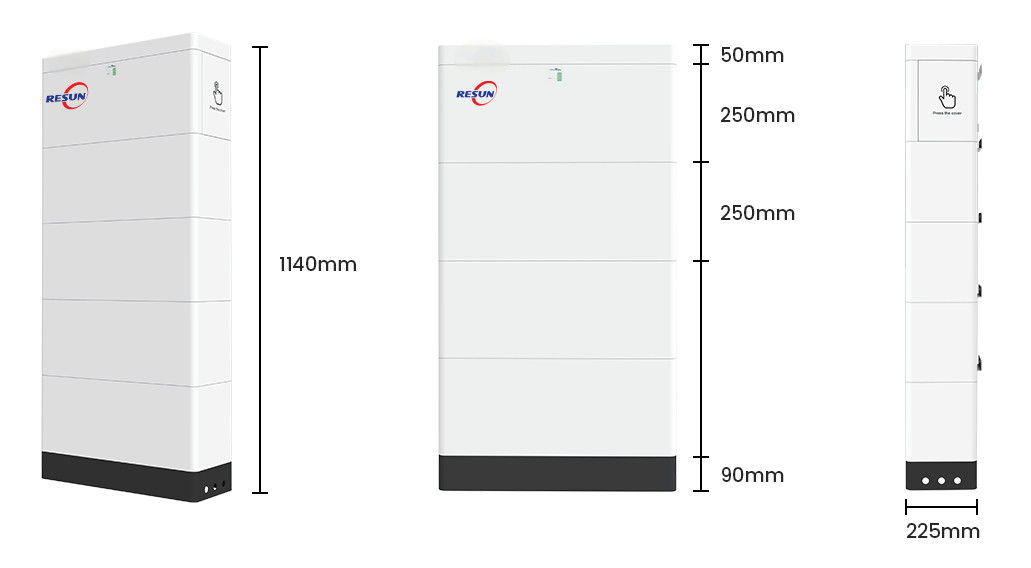

*Dimension (LWH)mm*	*6102251390*
Weight(KG)	223
Recommend charge current	50A
Max continue charge current	100A
Max continue discharge current	100A
Display	The information of Battery, such as SOC, battery voltage and so on
Communication	Support RS485 / CAN
Maximum parallel support	4 clusters(3 to 6 units per cluster)
Charging temperature	0℃~55℃
Discharge temperature	-20℃~60℃
Environment	Indoor
Relative humidity	5%～95%
Cooling	Natural convection
Cell technology	Lithium-iron phosphate (LiFePO4)
Protection Rating	IP65
Life cycle	6000 times @80%DOD
Certificates	CB, IEC62619, CE-EMC, CE-GPSD, UKCA, UL1973, UL9540A, EN62040, IEC62040; UN38.3, MSDS
Single module Technical Specification
Module	51.2V 100Ah, 5.12kWh
*Dimension (LWH)mm*	*High Voltage Box:610225250 Battery Box:610225250*
Weight(KG)	High Voltage Box:16 Battery Box:48.5
