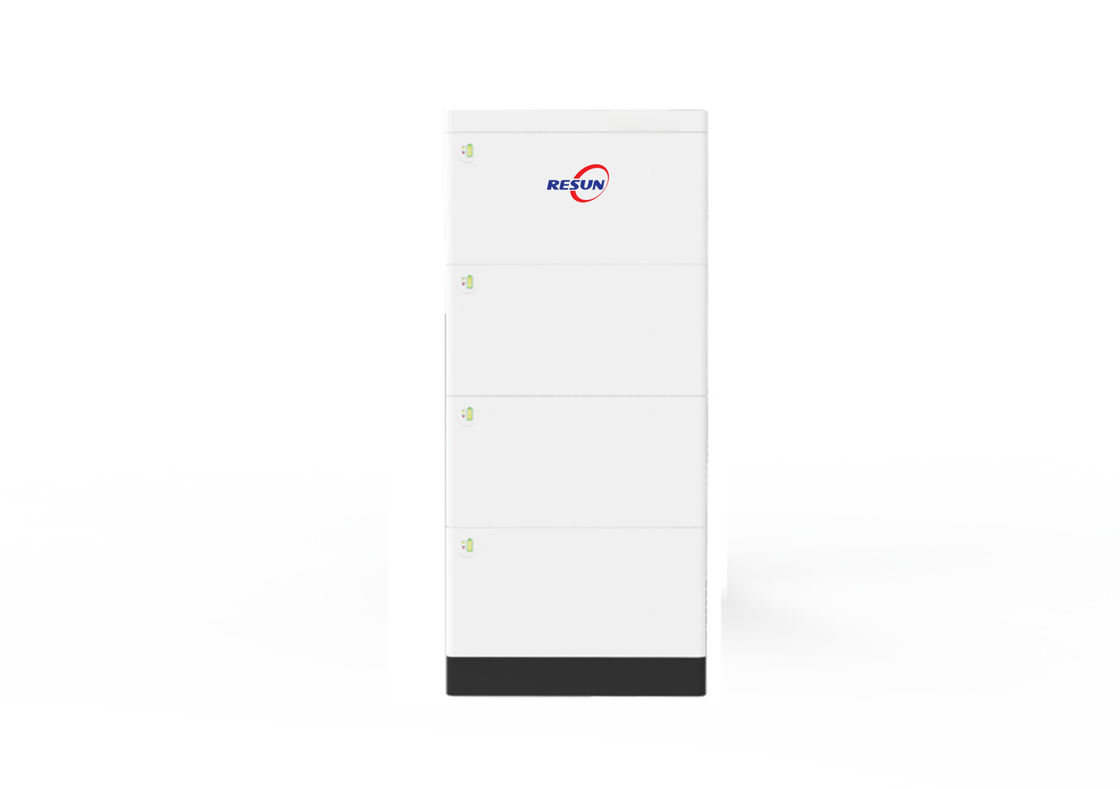

5.12KWH LiFePO4 Lithium Battery Stackable Support RS485 / CAN

Name: 5.12KWH LiFePO4 Lithium Battery Stackable Support RS485 / CAN
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: LV-BT-L5.12Aa-1
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	UN38.3,MSDS,TCAR,CB,CE-EMC
Model Number:	LV-BT-L5.12Aa-1

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

UN38.3,MSDS,TCAR,CB,CE-EMC

Model Number:

LV-BT-L5.12Aa-1

Model:

LV-BT-L5.12Aa-1

Warranty:

5 Years

Operating Voltage:

43.2V~56.16V

IP Rating:

IP65

Cycle Life:

6000cycles@80%DOD,25℃/0.5C

Battery Chemistry:

Lithium IronPhosphate (LFP)

Certifications:

UN38.3, MSDS, TCAR, CB, CE-EMC

Highlight:

High Light

Highlight:

Stackable LiFePO4 Lithium Battery

5.12KWH LiFePO4 Lithium Battery

RS485 LiFePO4 Lithium Battery

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

5.12KWH stackable LiFePO4 Lithium Battery

• Adopting a 51.2V low-voltage lithium battery architecture, it is compatible with off grid photovoltaic systems for direct connection, eliminating losses from high-voltage converters and increasing the energy conversion rate to 98%.
• Lithium iron phosphate battery cell design, modular stacking support 10-50kWh capacity expansion, installation weight reduced by 40%.
• Integrated low-voltage BMS protection system, equipped with overcharge and over discharge warning, IP65 protection level suitable for outdoor environment, supporting wide temperature operation from -20 ℃ to 60 ℃.

FEATURES

• 51.2V Low voltage LiFePO4 battery module, Single module is 51.2V 100Ah 5.12kWh.

• 1 to 6 layers recommended.

• Can choose common 48V single or three phase 5KW, 8KW,10KW, 12KW off grid or hybrid on and off grid solar inverter.

• Cobalt Free Lithium Iron Phosphate (LFP) Battery: Maximum Safety,

• Life Cycle and Power.

• Capable of High-Powered Emergency-Backup and Off-Grid Function.

• Self-Consumption Optimization for Residential and Commercial Applications.

• Modular Design Simplifies Transport and Installation.

Description

TechnicaI Specification	LV-BT-L5.12Aa-1
Model	51.2V100Ah
Number of layers	1 layers
Energy	5.12KWh
Dimension *(LWH)mm*	*600210440*
Dimension *(LWH)mm*	*600210440*
Weight(KG)	56
Operating Voltage Range	43.2V~56.16V
Recommend charge current	50A
MAX. continuous charge/discharge current	100A
Peak discharge current	150A600ms
LED Display	The information of Battery, such as SOC, battery working status.
Communication	Support RS485 / CAN
Charging temperature	0℃~55℃
Discharge temperature	-20℃~60℃
Environment	Indoor
Relative humidity	5%～95%
Cooling	Natural cooling
Cell technology	Lithium-iron phosphate (LiFePO4)
Life cycle	6000 times @80%DOD
Protection Rating	IP65
Certificates	CB, IEC62619, UL1973, UL9540A, UKCA, CE-EMC, CE-GPSD, EN62619 ; UN38.3, MSDS
Single module Technical Specification
Module	51.2V 100Ah, 5.12kWh
*Dimension (LWH)*	*Battery Box:600210300mm*
Battery module weight	48KG
