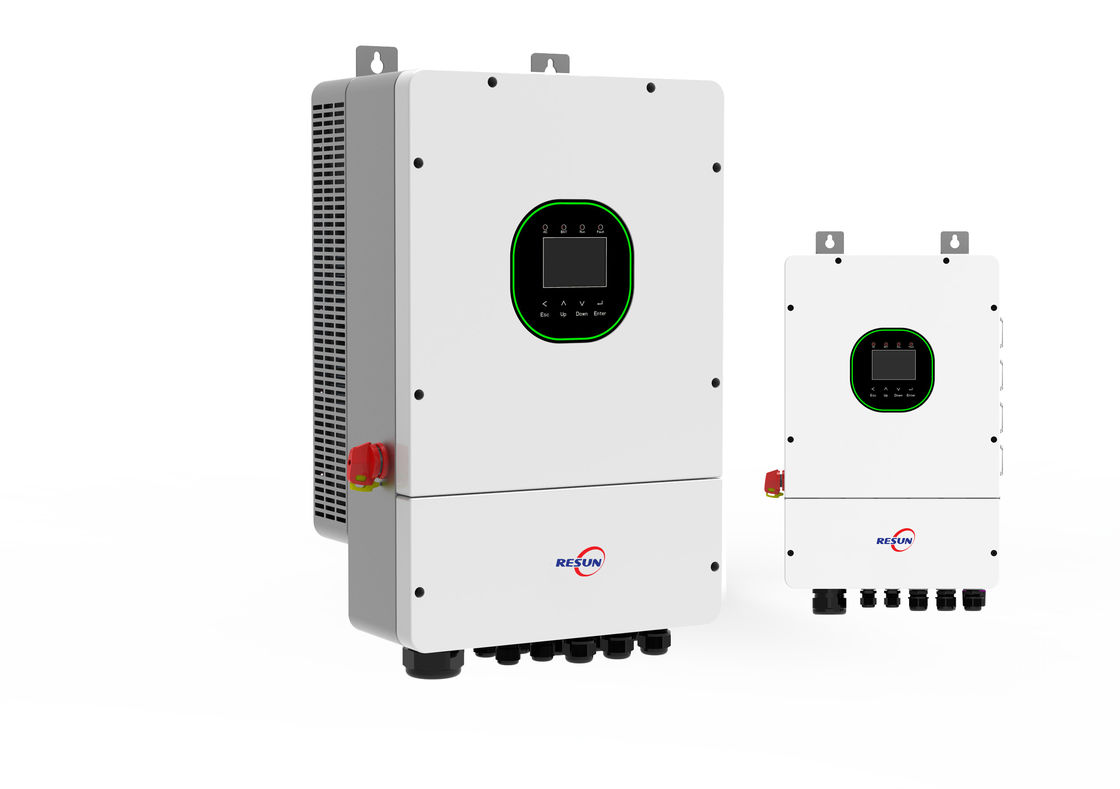

8KW Intelligent load connected to parallel single-phase hybrid inverter

Name: 8KW Intelligent load connected to parallel single-phase hybrid inverter
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: R-8K-SL-02
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC 61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097
Model Number:	R-8K-SL-02

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC 61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097

Model Number:

R-8K-SL-02

Model:

R-8K-SL-02

Power Rating:

8.0 KW

Max Efficiency:

97.6%

Operating Temperature Range:

-40 To 60°C

Battery Compatibility:

Lead-acid Or LiFePO4

Rated Battery Voltage:

40～60

Cooling Method:

Intelligent Fan Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

90～480Vdc，40/40A

Communication Interfaces:

Wi-Fi/Ethernet/4G(Optional)

Certifications:

EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC 61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097

Warranty:

5/10 Years

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

8KW Intelligent load connected to parallel single-phase hybrid inverter

• Support intelligent load dynamic access, automatically adjust power allocation according to electricity demand, single-phase hybrid design suitable for off grid/grid connected scenarios, achieve efficient energy conversion and intelligent management.
• Equipped with intelligent load recognition and access functions, it can accurately match the power consumption characteristics of different devices. The parallel architecture supports flexible capacity expansion, and the single-phase hybrid mode takes into account AC/DC conversion, making it suitable for intelligent power dispatch in distributed energy systems.
• A parallel inverter designed specifically for intelligent loads, which can respond to load changes in real time and optimize energy output. The single-phase hybrid technology is compatible with multiple power inputs and supports independent operation off grid or coordinated grid connection, enhancing the reliability and flexibility of system power supply.

KEY STRENGTHS

• Max 20A input current to better match high power panel

• Max. 4 pcs parallel for on-grid and off-grid operation

• Heat-resistant (＞50℃with derating)

• Support generator / smart load access

Description

MODEL	R-8K-SL-02
DC Input
Max. PV Array Power [Wp]@STC	16000
Max. DC Voltage [V]	500
MPPT Voltage Range [V]	90～480
Rated DC Voltage [V]	360
Start Voltage [V]	80
Max. DC Input Current [A]	40/40
Max. DC Short Circuit Current [A]	50/50
No. of MPPT	2
Battery Parameters
Battery Type	Lead-acid or LiFePO4
Battery Voltage Range [V]	40～60
Max. Charging/Discharging Current [A]	190
AC Output [On-grid]
Rated AC Power [W]	8000
Max. Apparent Power [VA]	8800
Rated Output Current [A]@230Vac	34.8
Max. Output Current [A]	40
Rated AC Voltage/Range [V]	L+N+PE, 220,230,240/180～280
Rated Output Frequency/Range [Hz]	50,60/45～55,55～65
Power Factor [cos φ]	0.8 leading～0.8 lagging
Total Harmonic Distortion [THDi]	<3%
AC Input [On-grid]
Rated AC Voltage/Range [V]	L+N+PE, 220,230,240/180～280
Rated Input Frequency [Hz]	50,60
Max. Input Current [A]@230Vac	80
AC Output [Back-up]
Max.Output Power [VA]	8000
Max. Output Current [A]	40
Peak Output Apparent Power [VA]	6000,60s
Rated AC Voltage/Range [V]	L+N+PE, 220,230,240/180～280
Rated Output Frequency/Range [Hz]	50,60/45～55,55～65
Output THDv (@ Linear Load)	<3%
Efficiency
Max. Efficiency	97.6%
Euro Efficiency	97.0%
Protection
Battery Input Reverse Polarity Protection	Integrated
Over load Protection	Integrated
AC Short Circuit Current Protection	Integrated
DC Surge Protection	Integrated
AC Surge Protection	Integrated
Anti-islanding Protection	Integrated
AFCI Protection	Optional
RSD Protection	Optional
Interface
PV Connection	Terminal Block
AC Connection	Terminal Block
Battery Connection	Terminal Block
Display	LED+APP
Communication	Wi-Fi/Ethernet/4G(Optional)
General Parameters
Topology	Non-isolated
Operating Temperature Range	-40℃ to +60℃ (50℃ to 60℃ with derating)
Cooling Method	Intelligent Fan cooling
Ambient Humidity	0-100% Non-condensing
Altitude	4000m (>3000m Power Derating)
Noise [dBA]	<50
Ingress Protection	IP65
*Dimensions [HWD] [mm]*	*590380241*
Weight [kg]	29
Warranty [Year]	5/10
Standard	EN 62109-1/2, EN 61000-6-1/2/3/4,IEC 62116, IEC 61727,IEC62183,PEA&MEA,NBR 16149, NBR 16150, PORTARIA Nº 140,515, NRS097
