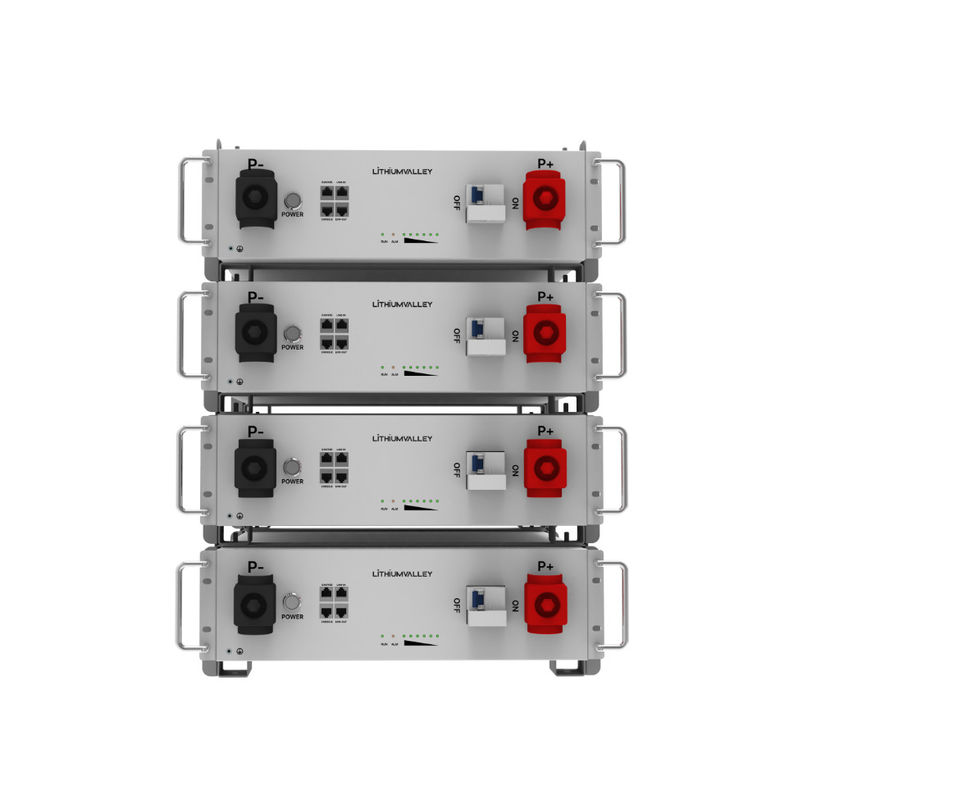

5KWh Household low-voltage rack mounted battery

Name: 5KWh Household low-voltage rack mounted battery
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: LV-R5
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	UL 1973,UL 9540A,UL 9540
Model Number:	LV-R5

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

UL 1973,UL 9540A,UL 9540

Model Number:

LV-R5

Model:

LV-R5

Energy:

5,120Wh

Operating Voltage:

44.8~56.16V

Warranty:

5 Years

IP Rating:

IP20

Cycle Life:

6,000 Cycles @77°F(25°C), 0.5C/0.5C

Battery Chemistry:

Lithium IronPhosphate (LFP)

Certifications:

UL 1973,UL 9540A,UL 9540

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

FEATURES

Longer Life and Safer

• A+ grade lithium iron phosphate .

• Battery management system with multi-level protection.

Smart

• A self-developed battery management system (BMS) that is capable of intelligent and efficient power output management.

• Able to charge at nearly 100% efficiency.

• Guaranteed not to lose closed loop communications during possible future updates with MidNite AIO inverter or battery firmware.

Flexible and Expandable

• Up to 12 units in parallel .

• The system's energy capacity is up to 81kWh.

Easy to Install and Use

• Applications Residential,Commercial,Industrial,Off-grid,Grid tie and Self-consumption.Compatible with all 48V inverters that support LFP.

Compliance

• UL 1973,UL 9540A,UL 9540.

Description

Product Name	R5
EIectricaI Characteristics
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Energy	5,120Wh
Battery Chemistry	Lithium Iron Phosphate (LFP)
Impedance	≤0.30m Ω
Cycle Life	6,000 cycles @77°F(25°C), 0.5C/0.5C
Operating Voltage	44.8~56.16V
Communication Interfaces	CAN/RS485/RS232
Scalable	Up to 12 units
Charge&Discharge
Nominal Discharging Rate	0.5C
Max. Discharging Rate	1C
Nominal Charging Rate	0.5C
EnvironmentaI
Environment	Indoor(Type 1)
Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Storage Temperature	14°F to 113°F (-10°C to 45°C)
Altitude	Maximum 9,843 ft (3,000 m)
Cooling Method	Natural Convection
Ingress Rating	IP20
MechanicaI
Dimension(L x W x D)	17.7×17.4×5.2in(450444133mm)
Weight	96.5lbs(43.8kG)
Installation	Rack mount
