Low Voltage Battery
>

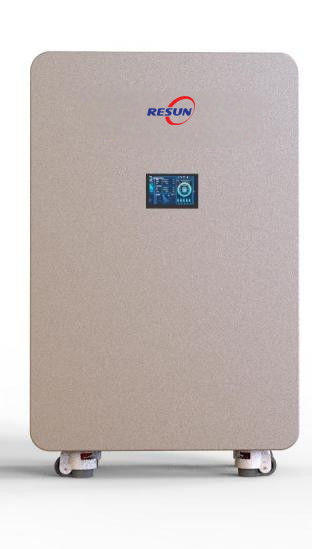

6KW Household Inverter - 15KWh Battery Safety All - in - One Unit

6KW Household Inverter - 15KWh Battery Safety All - in - One Unit

Product Details:
Place of Origin: China
Brand Name: RESUN
Certification: -
Model Number: AL-6K-15KWh
Detail Information
Place of Origin:
China
Brand Name:
RESUN
Certification:
-
Model Number:
AL-6K-15KWh
Model:
AL-6K-15KWh
Inverter:
6KW
Battery Capacity:
15KWh
Rated Voltage:
51.2V
Capacity:
305Ah
Battery Type:
3.2V 100A H (16 S 1 P )
Design Life:
More Than 6 Years
Operating Temperature:
Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C
Dimensions:
560*270*985mm
Weight:
About 120 Kg
Protocol (Optional):
Modbus/RS485/CAN
Trading Information
Minimum Order Quantity:
1
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
10000
Product Description

6KW Household Inverter - 15KWh Battery Safety All - in - One Unit


1. 6KW powerful inverter combined with 15KWh large capacity battery, safe integrated design, easily carrying the electricity needs of the entire house.
2. With multiple safety protections, 6KW inverter and 15KWh energy storage work together efficiently to ensure the safety and stability of household electricity consumption.
3. Wall mounted all-in-one machine design, easy to install and space saving, suitable for daily household use, peak and valley electricity consumption, and emergency energy storage scenarios.


FEATURES

•   Strong charging and discharging current: 100A maximum charging and discharging current, fast charging and stable discharging, able to quickly respond to peak power consumption, whether it is starting high-power equipment or daily power supply, it can be efficiently adapted to improve power efficiency.
•   Long life design: The design has a lifespan of over 6 years and a cycle life of over 3000 times under 80% DOD conditions. After long-term durability verification, it reduces frequent replacement costs and provides users with a durable and reliable energy storage solution.
•   Stable operation in a wide temperature range: charging temperature of 0~+55 ° C, discharging temperature of -20~+60 ° C, storage temperature of -20~+60 ° C, can work stably in a wide temperature range, not afraid of complex environments such as high temperature and cold, ensuring continuity of power supply.
•   Wide protocol compatibility: Supports optional Modbus/RS485/CAN protocols, can be integrated with various devices and control systems, easily integrates into existing power management systems, achieves intelligent monitoring and collaboration, and improves system integration convenience.

Description

Parameter Details
Model AL-6K-15KWh
Rated Capacity 305Ah (15KWH)
Rated Voltage 51.2V
Discharge Cut - off Voltage 305V
Charge Limiting Voltage 58.4V
Maximum Continuous Discharge Current 200A
Maximum Charge Current 200A
Weight About 120 kg
Inverter 6KW
Dimensions (WDH) in millimeters 560*270*985mm
Battery Type 3.2V 200AH (16 S 1 P)
Design Life More than 6 years
Cycle Life Over 3000 cycles at 80% DOD
Protocol (Optional) Modbus/RS485/CAN
Operating Temperature Charging: 0 ~ +55°C; Discharging: -20 ~ +60°C; Storage: -20 ~ +60°C
