6KW three-phase hybrid inverter supporting 100% unbalanced load output

Name: 6KW three-phase hybrid inverter supporting 100% unbalanced load output
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: R-6K-TH
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Model Number:	R-6K-TH

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Model Number:

R-6K-TH

Model:

R-6K-TH

Power Rating:

6KW

Max Efficiency:

98%

Operating Temperature Range:

-25~60℃

Battery Compatibility:

Lead-acid / Li-ion / User-defined

Rated Battery Voltage:

150~550V

Cooling Method:

Natural Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

180~850V, 18A+18A

Communication Interface:

Communication With RS485/Wifi/GPRS/CAN/DRM

Certifications:

IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC61000-3-12; EN 62109-1, EN 62109-2; EN50549-1; EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; Rfg:2016/NC Rfg:2018/PTPiREE:2021; NRS 097-2-1:2017; Hungary; NTS V2.1:2021-07&UNE21700

Warranty:

5 Years

Highlight:

High Light

Highlight:

Three Phase Inverters 6KW

Three Phase Hybrid Inverter 6KW

Digital Hybrid Inverter 6KW

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

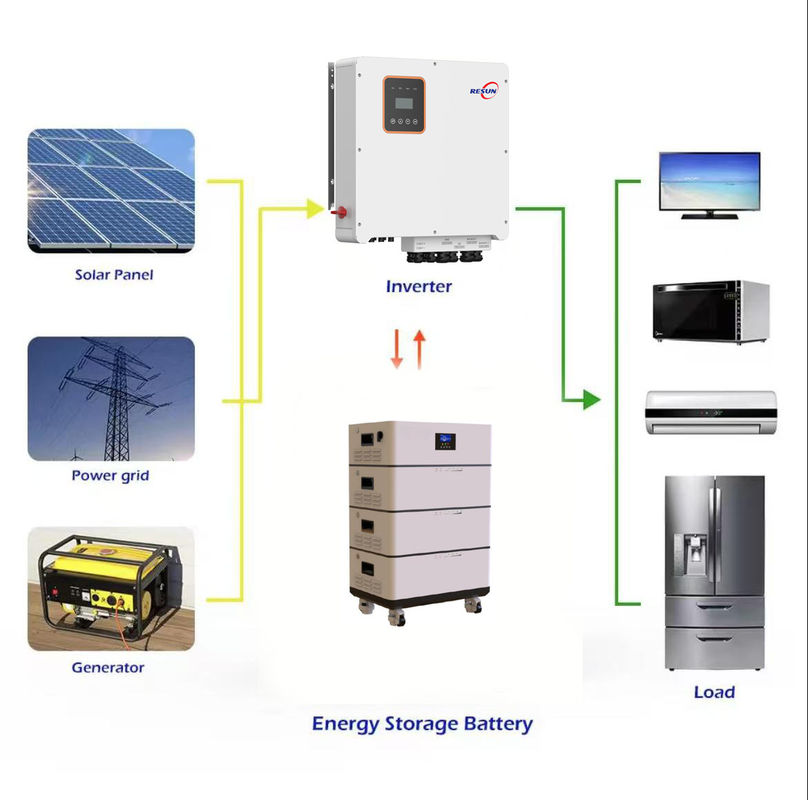

6KW three-phase hybrid inverter supporting 100% unbalanced load output

• Real time digital monitoring, operation data such as current, and clear status at a glance.
• Intelligent fault diagnosis, remote control mode switching, and more convenient management.
• Adapt to three-phase power systems and stably output high-power electricity.

KEY STRENGTHS

• Support BMS (RS485) remote upgrade.

• Compatible with single-phase and three-phase loads.

• Support full power discharge, automatic battery

• Support 100% unbalanced load output.

Description

Model	R-6K-TH
PV input data
Max. PV input power (kW)	9
Max. PV input voltage (V)	1000
Min. PV input voltage (V)	125
Start-up voltage (V)	125
MPPT voltage range (V)	180~850
MPPT voltage range@full-load (V)	250~850
Rated PV input voltage (V)	600
No. of MPPT trackers	2
No. of strings per MPPT tracker	1/1
Max. input current per MPPT (A)	18/18
Max. short-circuit current per MPPT (A)	25/25
Battery input data
Battery type	Lithium-ion / Lead-acid
Max. charge / discharge power (kW)	6.6
Battery voltage range (V)	150-550
Battery voltage range@full-load (V)	180-550
Max. charging / discharging current (A)	50/50
Rated charge / discharge current (A)	40/40
Battery charging strategy	Self-adaption to BMS
BMS communication	CAN
AC output data (grid side)
Rated output power (kW)	6
Max. apparent output power (kVA)	6.6
Max. apparent input power(kVA)	13.2
Rated grid voltage (V)	220 / 380; 230 / 400
Grid voltage range (V)	187~264.5
Grid input voltage (V)	380; 400
Rated grid frequency (Hz)	50/60
Grid frequency range(Hz)	45-55 / 55-65
Rated output current (A)	8.7
Max. AC output current (A)	9.5
Power factor	>0.99 (0.8 leading ~ 0.8 lagging)
THDi	<3%
Grid type	3L+N+PE
AC output data (back-up)
Rated output power (kW)	6
Max. apparent output power (kVA)	6.6
Rated output voltage (V)	220 / 380; 230 / 400
Rated output frequency (Hz)	50/60
Rated output current (A)	8.7
Max. AC output current (A)	9.5
Peak output power	≥110%, 10mins； ≥120%, 1.25min； ≥150%, 20ms
Back-up switch time (ms)	<10
THDu	<2%
Protection
Supported protection	PV reverse polarity protection, Anti-islanding protection, Ground fault protection, Battery reverse protection, Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection
Over voltage category	DC Type II / AC Type III
Certiﬁcations and standards
Certiﬁcates	IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11, IEC61000-3-12; EN 62109-1, EN 62109-2; EN50549-1; EN50549-10; EN50438; G98/G99:2022; VDE-AR-N 4105:2018; CEI 0-21:2022; C10/11; Rfg:2016/NC Rfg:2018/PTPiREE:2021; NRS 097-2-1:2017; Hungary; NTS V2.1:2021-07&UNE217002:2020&UNE217001:2020; NA/EEA-NE7 – CH 2020; OVE Directive R 25:2020, TOR Erzeuger Type A V1.2; TR3.3.1:2019;ANRE228; ANRE228; NA/EEA-NE7; PPDS:2022 for A1&A2; RS 097-2-1 :2017; OVE Directive R 25:2020, TOR Erzeuger Type A V1.2; EIFS 2018:2
General data
Ingress protection	IP65
Operating temperature range (℃)	-25~+60
Cooling	Natural cooling
Relative humidity	0-95%
Operating altitude (m)	4000(>2000 power derating)
*Dimensions WDH (mm)*	566 x 593.5 x 219.5
Weight (kg)	32
Topology (solar / battery)	Transformerless / Transformerless
Noise emission (dB)	<45
Display and communication
Display	Monochrome screen
Communication	RS485,CAN,WiFi
