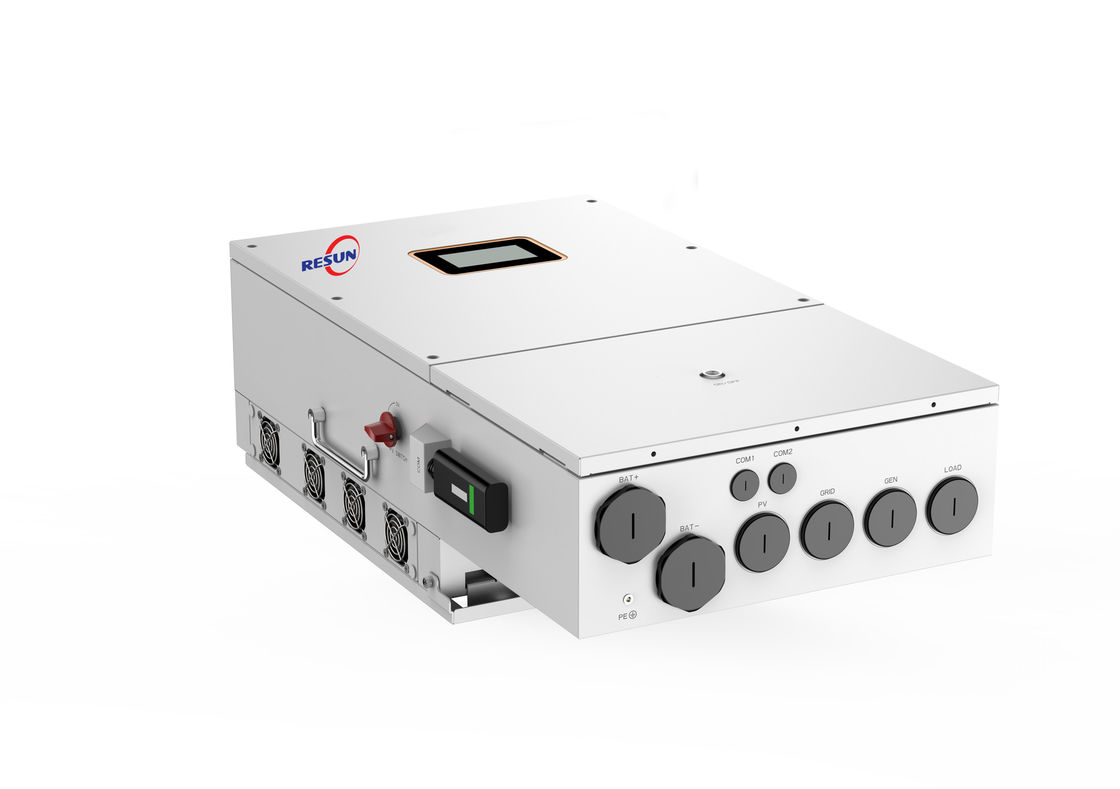

6KW supports diesel generator split phase inverter

Name: 6KW supports diesel generator split phase inverter
Brand: RESUN ENERGY CO,.LTD
SKU: R-6KUS
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE154
Model Number:	R-6KUS

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE154

Model Number:

R-6KUS

Model:

R-6KUS

Power Rating:

6KW

Max Efficiency:

98%

Operating Temperature Range:

-25 ~ 60℃

Battery Compatibility:

Li-ion / User-defined

Rated Battery Voltage:

48V

Cooling Method:

Fan Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

120-500V, 4*14A

Communication InterfaceInterface:

RS485, 4G(optional), Wi-Fi

Certifications:

FCC Part 15 Class B; UL1741SA All Options, UL1699B, CSA 22.2; IEEE1547

Warranty:

5 Years

Highlight:

High Light

Highlight:

Diesel Charging Inverter

6KW Charging Inverter

Diesel Generator Interface Charging Inverter

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

6KW supports diesel generator split phase inverter

• Charge and store electricity when the mains power is normal, and quickly invert the power supply after a power outage to ensure • continuous electricity consumption.
• Independent mains power and diesel generator interface, intelligent switching, stable and reliable power supply.
• Hospitals, base stations, remote factories and mines are essential for emergency power supply.

KEY STRENGTHS

• Support the construction of three-phase systems.

• 100A pass through.

• AC solar to retroﬁt existing solar system(on-grid & off-grid).

• Support 4-channel MPPT

Description

Model	R-6KUS
PV input data
Max. PV input power (kW)	9
Max. PV input voltage (V)	500
Min. PV input voltage (V)	120
Start-up voltage (V)	120
MPPT voltage range (without battery)(V)	120~500
MPPT voltage range@full-load (V)	150~430
Rated PV input voltage (V)	310
No. of MPPT trackers	4
No. of strings per MPPT tracker	1/1/1/1
Max. input current per MPPT (A)	14/14/14/14
Max. short-circuit current per MPPT (A)	22/22/22/22
Battery input data
Battery type	Lithium-ion / Lead-acid
Max. charge / discharge power (kW)	6
Battery voltage range (V)	40~60
Rated battery voltage (V)	48
Max. charging / discharging current (A)	135/135
Rated charge / discharge current (A)	135/135
Battery charging strategy	Self-adaption to BMS
BMS communication	CAN
AC output data (grid side)
Rated output power (kW)	6
Max. apparent output power (kVA)	6.6
Rated grid voltage( (V)	110-127/208-240V split phase, 240V single phase
Grid voltage range (V)	192~288
Rated grid frequency (Hz)	60
Grid frequency range(Hz)	55 to 65
Rated output current (A)	25
Max. AC output current (A)	27.5
Power factor	0.8leading~0.8lagging
Max. grid passthrough current(A)	100
THDi	<3%
Grid type	2L+N+PE
AC output data (load side)
Rated output power (kW)	6
Max. apparent output power (kVA)	6.6
Rated output voltage (L-N/L1-L2) (V)	120/240
Rated output frequency (Hz)	60
Rated output current (A)	25
Max. AC output current (A)	27.5
Peak output power	110%,30s / 120%,10s / 150%,0.02s
Back-up switch time (ms)	<20
THDu	<2%
Protection
Supported protection	Arc fault protection, PV reverse polarity protection, Anti-islanding protection, Ground fault protection Leakage current protection, Insulation resistance detection, Backup output short circuit protection, AC under-voltage protection, AC output over-current protection, AC over-voltage protection,
Surge protection	DC Type II / AC Type II
Over voltage category	DC Type II / AC Type III
Certiﬁcations and standards
Certiﬁcates	FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE1547
General data
Ingress protection	IP65 / NEMA 3R
Operating temperature range (℃)	-25~+60
Cooling	Fan cooling
Relative humidity	0-95%
Operating altitude (m)	0~4,000(Derating above 2,000 altitude)
*Dimensions WDH (mm)*	450 x 820 x 240
Weight (kg)	47
Topology (solar / battery)	Transformerless / Transformer
Noise emission (dB)	48
Display and communication
Display	Touch panel
Communication	RS485, 4G(optional), Wi-Fi
