Home > products >
Split Phase Hybrid Inverter
>

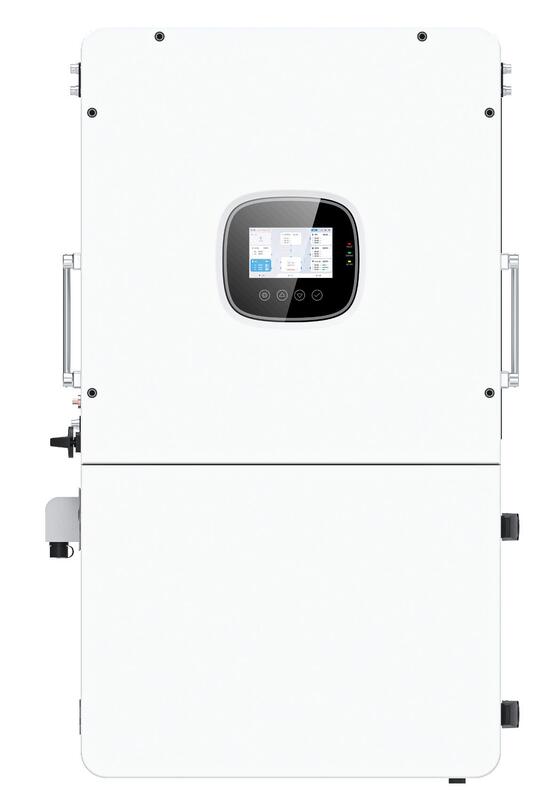

16KW split-phase inverter supporting dual independent battery packs
16KW split-phase inverter supporting dual independent battery packs
  • 16KW split-phase inverter supporting dual independent battery packs
  • 16KW split-phase inverter supporting dual independent battery packs
  • 16KW split-phase inverter supporting dual independent battery packs

16KW split-phase inverter supporting dual independent battery packs

Product Details:
Place of Origin: China
Brand Name: RESUN
Certification: FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)
Model Number: R-16KUS
Detail Information
Place of Origin:
China
Brand Name:
RESUN
Certification:
FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)
Model Number:
R-16KUS
Model:
R-16KUS
Power Rating:
16KW
Max Efficiency:
98%
Operating Temperature Range:
-25 ~ 60℃
Battery Compatibility:
Li-ion / User-defined
Rated Battery Voltage:
48V
Cooling Method:
Fan Cooling
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
120-500V, 4*20A
Communication InterfaceInterface:
RS485, 4G(optional), Wi-Fi
Certifications:
FCC Part 15 Class B; UL1741SA All Options, UL1699B, CSA 22.2; IEEE1547
Warranty:
5 Years
Highlight:

High Light

Highlight:

AC Coupled Split Phase Inverter

,

Plug And Play Split Phase Inverter

,

16KW Split Phase Hybrid Inverter

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
10000
Product Description

16KW split-phase inverter supporting dual independent battery packs

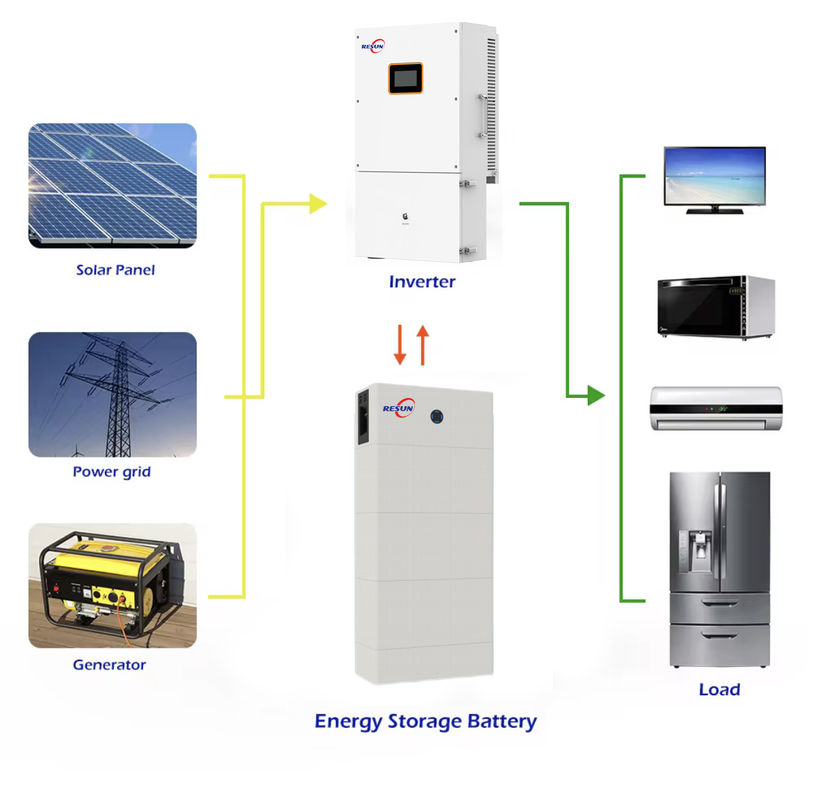

•   Plug and play: No need to debug directly connected circuits, fast networking, time-saving and efficient. ​
•   Compatible and adaptable: AC coupled optical storage devices with split phase output to meet the electricity needs of North American and  other scenarios. ​
•   Intelligent stable supply: automatic energy adjustment, free switching from grid connection, stable and worry free household and commercial electricity consumption.



KEY STRENGTHS
•   Support the construction of
•   Capable of supporting 100% unbalanced loads.
•    AC solar to retrofit existing solar system(on-grid & off-grid).
•    Grid & generator separately connected, support storing energy from diesel generator.

Description

Model R-16KUS
PV input data
Max. PV input power (kW) 24
Max. PV input voltage (V) 500
Min. PV input voltage (V) 120
Start-up voltage (V) 120
MPPT voltage range (without battery)(V) 120~500
MPPT voltage range@full-load (V) 150~430
Rated PV input voltage (V) 310
No. of MPPT trackers 4
No. of strings per MPPT tracker 1/1/1/1
Max. input current per MPPT (A) 20/20/20/20
Max. short-circuit current per MPPT (A) 25/25/25/25

16KW split-phase inverter supporting dual independent battery packs 016KW split-phase inverter supporting dual independent battery packs 1Battery input data
Battery type Lithium-ion / Lead-acid
Max. charge / discharge power (kW) 13
Battery voltage range (V) 40~58
Rated battery voltage (V) 48
Max. charging / discharging current (A) 260/280
Rated charge / discharge current (A) 260/280
Battery charging strategy Self-adaption to BMS
BMS communication CAN
AC output data (grid side)
Rated output power (kW) 16
Max. apparent output power (kVA) 16
Rated grid voltage( (V) 110-127/208-240V split phase, 240V single phase
Grid voltage range (V) 240
Rated grid frequency (Hz) 60
Grid frequency range(Hz) 55 to 65
Rated output current (A) 66.7
Max. AC output current (A) 73.3
Power factor 0.8leading~0.8lagging
Max. grid passthrough current(A) 200
THDi <3%
Grid type 2L+N+PE
AC output data (load side)
Rated output power (kW) 13
Max. apparent output power (kVA) 13.2
Rated output voltage (L-N/L1-L2) (V) 120/240
Rated output frequency (Hz) 60
Rated output current (A) 54
Max. AC output current (A) 55
Peak output power 110%,30s / 120%,10s / 150%,0.02s
Back-up switch time (ms) <20
THDu <2%
Protection
Supported protection Arc fault protection, PV reverse polarity protection, Anti-islanding protection, Ground fault protection
Leakage current protection, Insulation resistance detection, Backup output short circuit protection,
AC under-voltage protection, AC output over-current protection, AC over-voltage protection,
Surge protection DC Type II / AC Type II
Over voltage category DC Type II / AC Type III
Certifications and standards
Certificates FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE1547
General data
Ingress protection IP65 / NEMA 3R
Operating temperature range (℃) -25~+60
Cooling Fan cooling
Relative humidity 0-95%
Operating altitude (m) 0~4,000(Derating above 2,000 altitude)
Dimensions W*D*H (mm) 495 x 900 x 260
Weight (kg) 55
Topology (solar / battery) Transformerless / Transformer
Noise emission (dB) 48
Display and communication
Display Touch panel
Communication RS485, 4G(optional), Wi-Fi
