Single Phase Off Grid Inverter
>

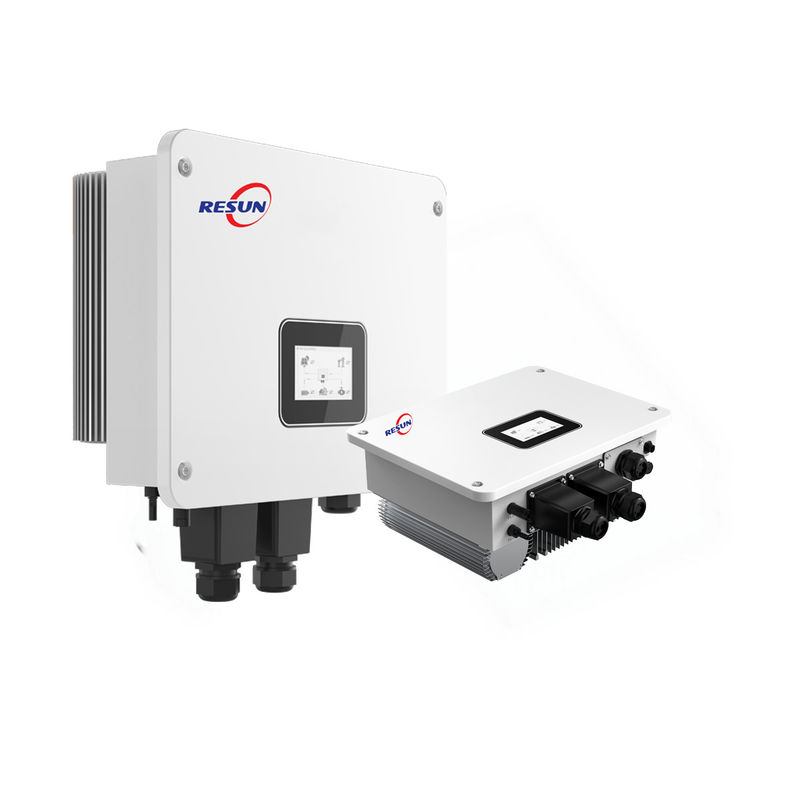

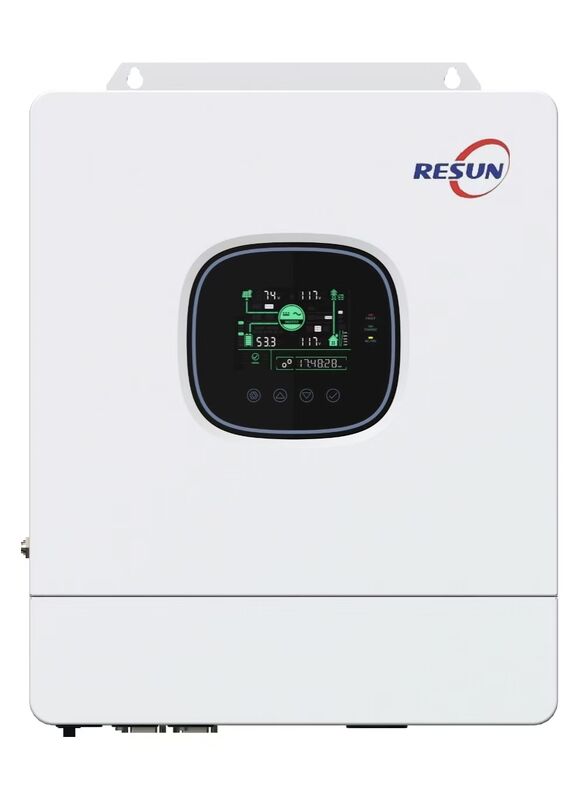

5KW protection level IP65 single-phase off grid inverter
5KW protection level IP65 single-phase off grid inverter
  • 5KW protection level IP65 single-phase off grid inverter
  • 5KW protection level IP65 single-phase off grid inverter
  • 5KW protection level IP65 single-phase off grid inverter

5KW protection level IP65 single-phase off grid inverter

Product Details:
Place of Origin: China
Brand Name: RESUN
Certification: -
Model Number: O-5K-LMG
Detail Information
Place of Origin:
China
Brand Name:
RESUN
Certification:
-
Model Number:
O-5K-LMG
Model:
O-5K-LMG
Power Rating:
5KW
Max Efficiency:
96%
Operating Temperature Range:
-25~60℃
Battery Compatibility:
Lead-acid / Li-ion / User-defined
Rated Battery Voltage:
48V
Cooling Method:
Natural Convection
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
100~430V, 32A
Communication Interface:
Communication With RS485/Wifi/GPRS/CAN/DRM
Certifications:
-
Warranty:
3 Years
Highlight:

High Light

Highlight:

Photovoltaic Single Phase Off Grid Inverter

,

Household Single Phase Off Grid Inverter

,

5KW Photovoltaic Inverter

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
10000
Product Description

5KW protection level IP65 single-phase off grid inverter

•   Adopting dual MPPT tracking technology, the DC super matching reaches 2.0 times, accurately matching different specifications of •  photovoltaic panels, and efficiently converting solar energy into stable electricity. ​
•   Supports lithium and lead-acid batteries, compatible with multiple energy storage solutions, and adapts to the diverse electricity and energy storage needs of households. ​
•   Suitable for various household electricity scenarios, from lighting to high-power appliances such as air conditioning and refrigerators, all can be stably driven.



KEY STRENGTHS
•   Strong load adaptability and grid adaptability.
•   Max. 1.5x PV power, no noise.
•   Adopting a large touch screen.
•   Support three-phase function.

Description

Model O-5K-LMG
PV input data
Max. input power (kW) 7.5
MPPT tracker/strings 1/1
Max. PV input voltage (V) 500
MPPT voltage range (V) 100~430
Max. input current (A) 32
Short circuit current (A) 37
5KW protection level IP65 single-phase off grid inverter 05KW protection level IP65 single-phase off grid inverter 15KW protection level IP65 single-phase off grid inverter 2Battery
Rated voltage (V) 48
Battery voltage range (V) 40-58
Max. charging/discharging current (A) 100/100
Battery type Lithium/Lead-acid
Battery charging strategy Self-adaption to BMS
Off-grid output
Rated output power (kW) 5
Rated output voltage (V) 230
Output frequency (Hz) 50/60
Max. apparent output current (A) 21.7
Max. output over current (A) 26
Power factor 1 (0.8 leading~0.8 lagging)
THDu <3%
Switching time (ms) 10
Grid input
Rated input voltage (V) 230
Grid voltage input range (V) 176~270
Rated grid frequency (Hz) 50/60
THDi <3%
Type of grid connection L+N+PE
AC input(On-GEN)
Max. input power (kW) 5
Max. input current (A) 21.7
Protection
Island protection Yes
Insulation resistor detection Yes
PV input reverse protection Yes
Output over current protection Yes
Output short protection Yes
Output over voltage protection Yes
Output under voltage protection Yes
AC/DC surge protection Yes
General data
Max. efficiency 96%
Operating temperature range (℃) -25 ~+60
Relative humidity 5%-95%
Operating altitude (m) 0-2,000
Ingress protection IP65
Weight (kg) 17
Dimensions W*D*H (mm) 455*200*447
Cooling Natural convection
Noise emission (dB) <35
Display Color screen
Communication With
RS485/Wifi/GPRS/CAN/DRM		 Possess/Optional/Optional/Possess/Possess
Topology Non-isolated
