Home > products >
Power Converter System
>

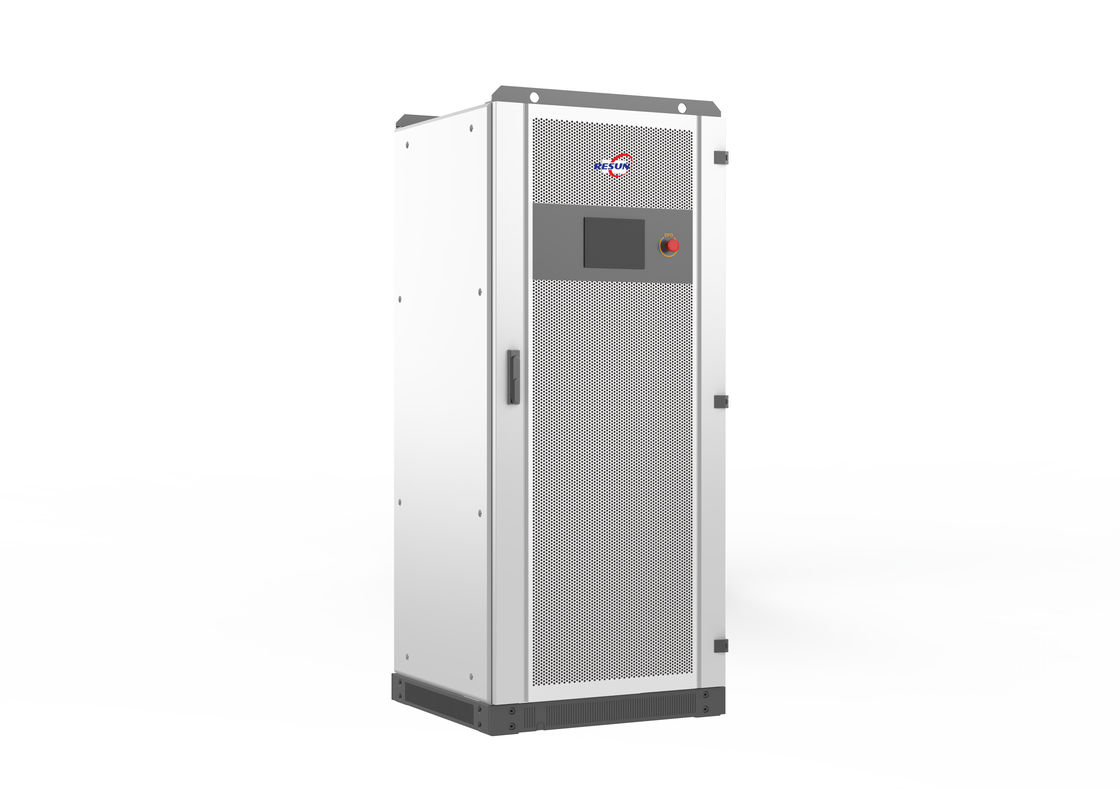

30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant
30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant
  • 30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant
  • 30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant

30KW Power Converter System Pcs Solar Inverter Adjustable Power Redundant

Product Details:
Place of Origin: China
Brand Name: RESUN
Certification: IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number: PCS-A30-MG
Detail Information
Place of Origin:
China
Brand Name:
RESUN
Certification:
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number:
PCS-A30-MG
Model:
PCS-A30-MG
Power Rating:
30KW
Max Efficiency:
96.3%
Operating Temperature Range:
-30 ~ 55℃
Battery Compatibility:
Li-ion / User-defined
Rated Battery Voltage:
250-850V
Cooling Method:
Automatic
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
250~850
Communication InterfaceInterface:
RS485/Wifi/GPRS/CAN/TCP/IP
Certifications:
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Warranty:
5 Years
Highlight:

High Light

Highlight:

30KW Pcs Solar Inverter

,

Adjustable Power Pcs Solar Inverter

,

Pcs Power Converter System

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
1000
Product Description

30KW Adjustable power redundant PCS


•   Equipped with adjustable power function, it can flexibly adapt to different power consumption scenarios and meet diverse power regulation requirements. ​
•   Adopting redundant design of auxiliary power supply significantly reduces the risk of failure and can continue to provide reliable power supply under complex working conditions. ​
•   Integrating adjustable power and redundant design, it has high reliability and flexible adaptability, and can be widely used in fields such as photovoltaics and energy storage, providing stable support for power systems.



KEY STRENGTHS
•   Reactive power, active power adjustable.
•   Redundant design for auxiliary power supply.
•   Multiple working modes are available, which can be flexibly applied to various working scenarios.
•   Highest power density, maximum efficiency reach 97.5%.



Description

Model PCS-A30-MG
DC(battery)
Voltage range (V) 250~850
Max. current (A) 137
AC(on-grid)
Max. output power (kW) 33
Rated output power (kW) 30
Rated voltage (V) 400
Voltage range (V) 320~460
Rated current (A) 43
Max. output current (A) 48
Rated frequency (Hz) 50/60
Frequency range (Hz) 45~55 / 55~65
THDi <3%
Power factor 1leading~1lagging(settable)
Grid type 3W+N+PE
AC(off-grid)
Rated voltage (V) 400
THDu <1% Linear ＜5% nonlinear
Rated frequency (Hz) 50/60
Overload capacity 110% long-term
General data
Max. efficiency 96.3%
Ingress protection IP21
Noise emission (dB) <70
Operating temperature (℃) -30 ～ +55
Cooling Forced air
Relative humidity 0 ~95% non-condensing
Max. operating altitude (m) 5,000(>3,000 derating)
Dimension W*D*H (mm) 800*800*1,900
Weight(kg) 621
Self-consumption <0.5%
On/ off grid switching Automatic
Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
Certificates IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017
ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
