Home > products >
Power Converter System
>

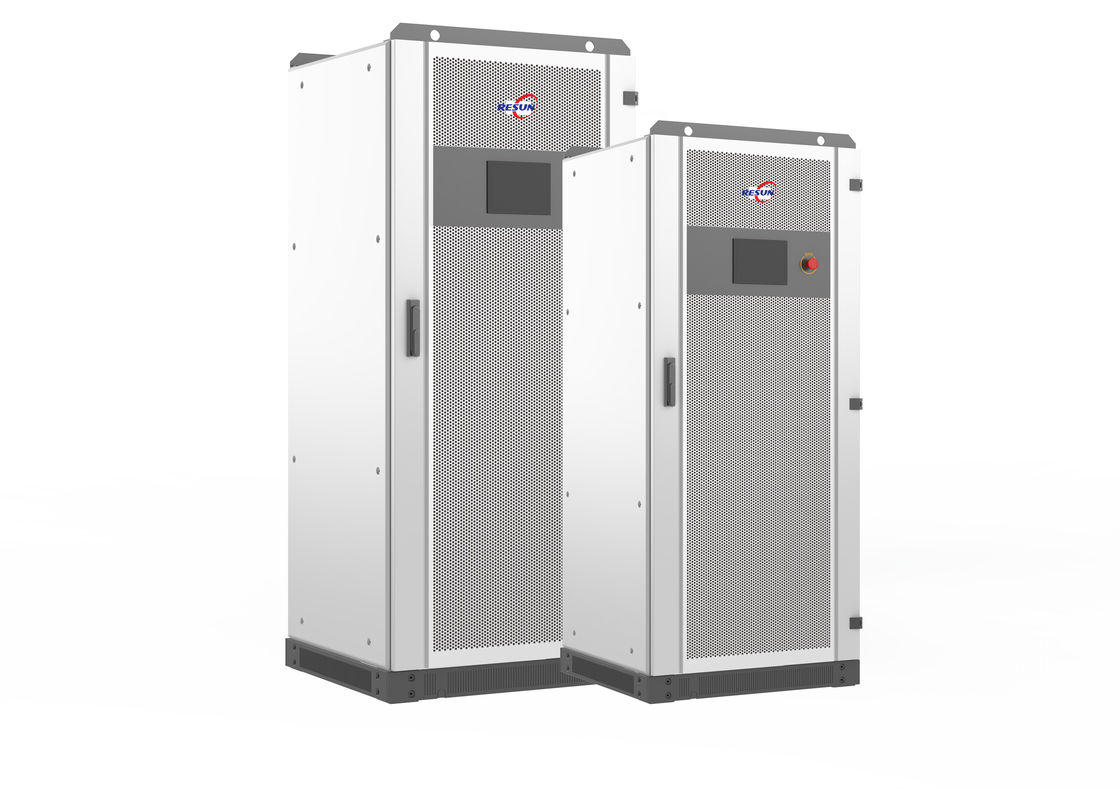

50KW adjustable PCS power conversion system with built-in isolation transformer
50KW adjustable PCS power conversion system with built-in isolation transformer
  • 50KW adjustable PCS power conversion system with built-in isolation transformer
  • 50KW adjustable PCS power conversion system with built-in isolation transformer

50KW adjustable PCS power conversion system with built-in isolation transformer

Product Details:
Place of Origin: China
Brand Name: RUSEN
Certification: IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number: PCS-A50-MG
Detail Information
Place of Origin:
China
Brand Name:
RUSEN
Certification:
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number:
PCS-A50-MG
Model:
PCS-A50-MG
Power Rating:
50KW
Max Efficiency:
96.5%
Operating Temperature Range:
-30 ~ 55℃
Battery Compatibility:
Li-ion / User-defined
Rated Battery Voltage:
320-850V
Cooling Method:
Automatic
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
320~850
Communication InterfaceInterface:
RS485/Wifi/GPRS/CAN/TCP/IP
Certifications:
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Warranty:
5 Years
Highlight:

High Light

Highlight:

Adjustable Mode PCS

,

Power Converter System 50KW

,

Adjustable Power Converter System

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
1000
Product Description


50KW adjustable PCS power conversion system with built-in isolation transformer


•    Support fine adjustment of active/reactive power, dynamically adjust output parameters according to load demand, and achieve efficient utilization of power resources. ​
•    Integrate multiple working modes, adapt to different scenarios such as grid connected and off grid power supply, and meet the operational requirements of energy storage systems. ​
•    Accurately control power output, flexibly adapt to complex working conditions, and provide stable solutions for new energy systems.



KEY STRENGTHS
•    Reactive power, active power adjustable.
•    Redundant design for auxiliary power supply.
•    Multiple working modes are available, which can be flexibly applied to various working scenarios.
•    Built-in isolation transformer, adapt to impact load.

Description

Model PCS-A50-MG
DC(battery)
Voltage range (V) 320~850
Max. current (A) 178
AC(on-grid)
Max. output power (kW) 55
Rated output power (kW) 50
Rated voltage (V) 400
Voltage range (V) 320~460
Rated current (A) 72
Max. output current (A) 80
Rated frequency (Hz) 50/60
Frequency range (Hz) 45~55 / 55~65
THDi <3%
Power factor 1leading~1lagging(settable)
Grid type 3W+N+PE
AC(off-grid)
Rated voltage (V) 400
THDu <1% Linear ＜5% nonlinear
Rated frequency (Hz) 50/60
Overload capacity 110% long-term
General data
Max. efficiency 96.5%
Ingress protection IP21
Noise emission (dB) <70
Operating temperature (℃) -30 ～ +55
Cooling Forced air
Relative humidity 0 ~95% non-condensing
Max. operating altitude (m) 5,000(>3,000 derating)
Dimension W*D*H (mm) 800*800*1,900
Weight(kg) 712
Self-consumption <0.5%
On/ off grid switching Automatic
Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
Certificates IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017
ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B



Tags:

Pcs Solar Inverter,

Pcs Inverter,

Power Conversion System
