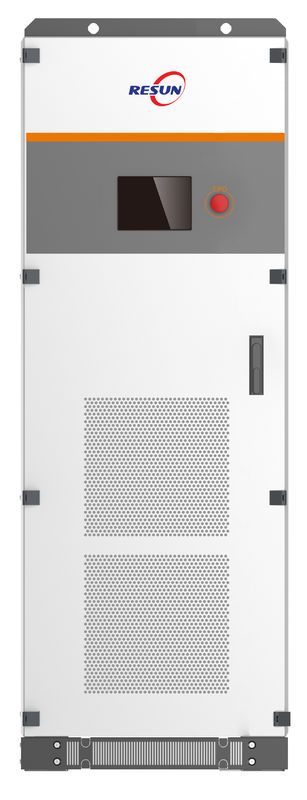

100KW Redundant Mode Isolated PCS Power Converter System
100KW Redundant Mode Isolated PCS Power Converter System
  • 100KW Redundant Mode Isolated PCS Power Converter System
  • 100KW Redundant Mode Isolated PCS Power Converter System

100KW Redundant Mode Isolated PCS Power Converter System

Product Details:
Place of Origin: China
Brand Name: RUSEN
Certification: IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number: PCS-A100-MG
Detail Information
Place of Origin:
China
Brand Name:
RUSEN
Certification:
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number:
PCS-A100-MG
Model:
PCS-A100-MG
Power Rating:
100KW
Max Efficiency:
97.1%
Operating Temperature Range:
-30 ~ 55℃
Battery Compatibility:
Li-ion / User-defined
Rated Battery Voltage:
420-850V
Cooling Method:
Automatic
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
420-850V
Communication InterfaceInterface:
RS485/Wifi/GPRS/CAN/TCP/IP
Certifications:
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Warranty:
5 Years
Highlight:

High Light

Highlight:

Power Converter System 100KW

,

Redundant Mode Isolation PCS

,

Redundant Mode Power Converter System

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
1000
Product Description



•   Redundant mode isolation PCS accurately achieves AC/DC power conversion, ensuring efficient transmission and conversion of electrical energy in different power scenarios, and meeting diverse electricity needs. ​
•   Equipped with redundant mode, it automatically switches in case of faults, maintaining stable system operation and greatly reducing the risk of downtime caused by faults. ​
•   With excellent isolation performance, it effectively resists electromagnetic interference and is suitable for fields such as industrial production, data centers, and new energy generation that require strict power supply stability.


KEY STRENGTHS
•  Reactive power, active power adjustable.
•  Redundant design for auxiliary power supply.
•  Highest power density, maximum efficiency reach 97.5%.
•  Built-in isolation transformer, adapt to impact load.

Description

Model PCS-A100-MG
DC(battery)
Voltage range (V) 420~850
Max. current (A) 270
AC(on-grid)
Max. output power (kW) 110
Rated output power (kW) 100
Rated voltage (V) 400
Voltage range (V) 320~460
Rated current (A) 144
Max. output current (A) 159
Rated frequency (Hz) 50/60
Frequency range (Hz) 45~55 / 55~65
THDi <3%
Power factor 1leading~1lagging(settable)
Grid type 3W+N+PE
AC(off-grid)
Rated voltage (V) 400
THDu <1% Linear ＜5% nonlinear
Rated frequency (Hz) 50/60
Overload capacity 110% long-term
General data
Max. efficiency 97.1%
Ingress protection IP21
Noise emission (dB) <70
Operating temperature (℃) -30 ～ +55
Cooling Forced air
Relative humidity 0 ~95% non-condensing
Max. operating altitude (m) 5,000(>3,000 derating)
Dimension W*D*H (mm) 800*800*1,900
Weight(kg) 936
Self-consumption <0.5%
On/ off grid switching Automatic
Display and communication
Display LCD touch-screen
BMS communication RS485, CAN
EMS communication RS485, TCP/IP
Certificates IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017
ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
