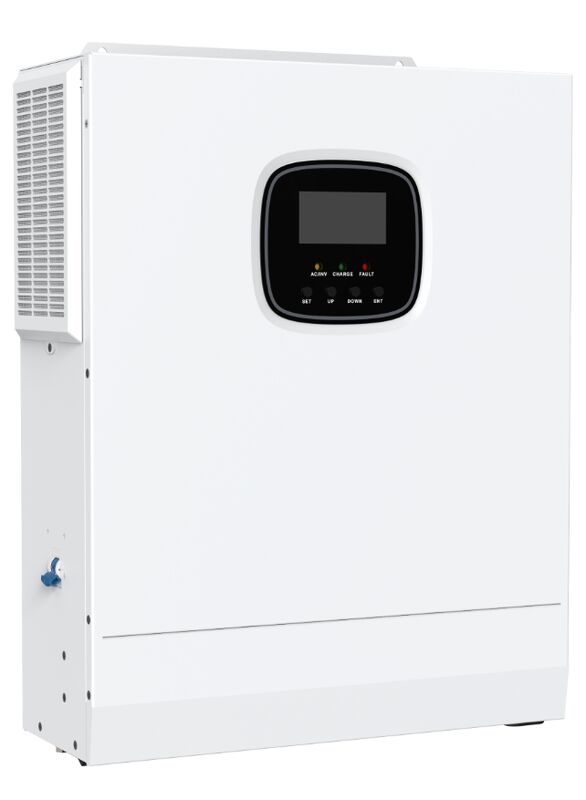

5KW split-phase off-grid inverter outputs 120/240VAC

Name: 5KW split-phase off-grid inverter outputs 120/240VAC
Brand: RESUN ENERGY CO,.LTD
SKU: R-5KUS
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE154
Model Number:	R-5KUS

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

FCC Part 15 Class B; UL1741SA all options, UL1699B, CSA 22.2; IEEE154

Model Number:

R-5KUS

Model:

R-5KUS

Power Rating:

5KW

Max Efficiency:

98%

Operating Temperature Range:

-25 ~ 60℃

Battery Compatibility:

Li-ion / User-defined

Rated Battery Voltage:

48V

Cooling Method:

Fan Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

120-500V, 4*14A

Communication InterfaceInterface:

RS485, 4G(optional), Wi-Fi

Certifications:

FCC Part 15 Class B; UL1741SA All Options, UL1699B, CSA 22.2; IEEE1547

Warranty:

5 Years

Highlight:

High Light

Highlight:

Three Phase Photovoltaic Inverter

5KW Photovoltaic Inverter

100A Bypass Load Photovoltaic Inverter

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

5KW split-phase off-grid inverter outputs 120/240VAC

• 80A bypass load capacity, easily handling high-power equipment, supporting 100% unbalanced load, flexible and unrestricted power • consumption.
• Specially designed for three-phase systems, intelligently regulating current distribution to reduce fluctuations.
• Efficient adaptation of photovoltaic systems to assist in stable grid connection and utilization of green energy.

KEY STRENGTHS

Efficiency

• Advanced MPPT with up to 99.9% efficiency

• Multiple charge and discharge modes are available

Safety

• 360 degrees of security from hardware to software

• Multiple safety approvals available

All in one

• Support for many types of batteries

• Supports Li-ion battery BMS communication

Description

INVERTER OUTPUT HSI 5000U
Rated Output Power	5,000W
Max. Peak Power	11,000VA
Rated Output Voltage	120Vac	✓
Load Capacity of Motors	4HP
Rated AC Frequency	50Hz/60Hz	✓
Waveform	Pure Sine Wave
Switch Time	10ms(typical)
BATTERY
Battery Type	Lead-acid / Li-ion / User defined	✓
Rated Battery Voltage	48V
Voltage Range	40～60Vdc	✓
Max. MPPT Charging Current	80A	✓
Max. Mains/Generator Charging Current	40A	✓
Max. Hybrid Charging Current	80A	✓
PV INPUT
Num. of MPPT Trackers	1
Max.PV Array Power	6,000W
Max.Input Current	22A
Max.Voltage of Open Circuit	500Vdc
MPPT Voltage Range	120-450Vdc
UTILITY/ GENERATOR INPUT
Input Voltage Range	90～140Vac	✓
Frequency Range	50/60Hz
Bypass Overload Current	63A
EFFICIENCY
MPPT Tracking Efficiency	99.9%
Max. Battery Inverter Efficiency	92%
GENERAL
Dimensions	426322126mm (1.401.060.41ft)
Weight	11.6kg (25.57lb)
Protection Degree	IP20, indoor onIy
Operating Temperature Range	-10℃~55℃
Noise	≤60dB
Cooling Method	Forced air cooling with adjustable air speed
Warranty	18 Months
COMMUNICATION
Embedded Interfaces	RS485 / USB / Dry contact	✓
External Modules(Optional)	Wi-Fi / GPRS	✓
CERTIFICATION
Safety	CE(IEC 62109-1)/CETL(UL1741 C22.2 NO.107.1)/FCC/SAA
EMC	EN61000
RoHS	Yes
