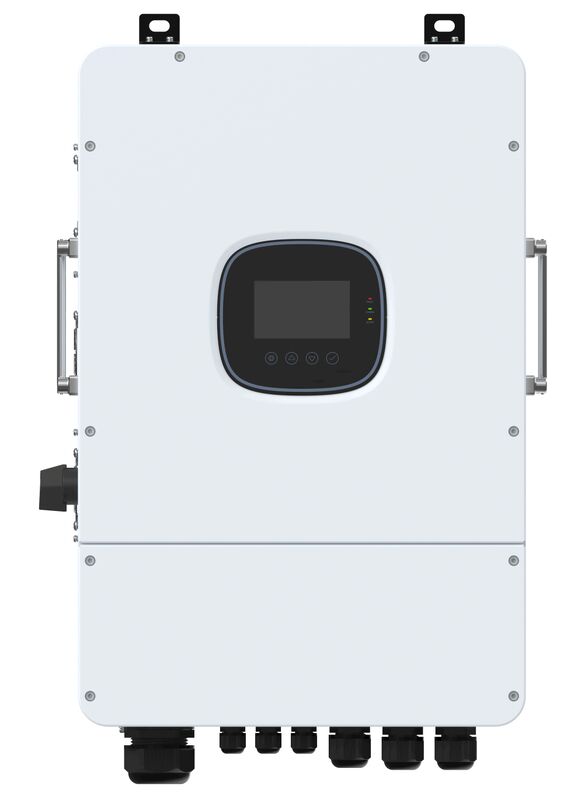

16kw Split-phase hybrid inverter Li-ion/Lead-Acid compatible UL certified
16kw Split-phase hybrid inverter Li-ion/Lead-Acid compatible UL certified
  • 16kw Split-phase hybrid inverter Li-ion/Lead-Acid compatible UL certified

16kw Split-phase hybrid inverter Li-ion/Lead-Acid compatible UL certified

Product Details:
Place of Origin: China
Brand Name: RESUN
Certification: -UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1- 2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP
Model Number: R-16KUS
Detail Information
Place of Origin:
China
Brand Name:
RESUN
Certification:
-UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1- 2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP
Model Number:
R-16KUS
Model:
R-16KUS
Power Rating:
18KW
Max Efficiency:
98%
Operating Temperature Range:
-25 ~ 60℃
Battery Compatibility:
Lithium-ion / Lead-acid
Rated Battery Voltage:
120~400V
Cooling Method:
FAN Cooling
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
120-400V, 4*32A
Communication InterfaceInterface:
RS485,CAN,WIFI,4G
Certifications:
UL
Warranty:
5 Years
Highlight:

High Light

Highlight:

16kw split phase hybrid inverter

,

UL certified hybrid inverter

,

Li-ion Lead-Acid compatible inverter

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
10000
Product Description
16kW Split-Phase Hybrid Inverter Li-ion/Lead-Acid Compatible UL Certified
Introducing the R-14KUS 48V 16kW split-phase hybrid inverter, a reliable solar storage solution for homes, farms, telecom and islands. With 99.9% MPPT efficiency and 3 trackers (40A+40A+40A), it maximizes 25.6kW PV input capture for optimal energy use.
Key Strengths
  • Advanced MPPT with up to 99.9% efficiency
  • Up to 40A*2 PV input current
  • Software and hardware security protection
  • Multiple safety approvals
  • Up to 350A charging current
  • Supports Li-ion battery BMS communication
Technical Specifications
Type R-16kUS
AC Input/Output Data
Rated AC Input/Output Active Power 16000W
Max. AC Input/Output Apparent Power 17600VA
Rated AC Input/Output Current 50A/44.5A
Max. AC Input/Output Current 50A/44.5A
Peak Power (off-grid) 32000VA
Power Factor Adjustment Range 0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range 120/208V 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range 60Hz/40Hz-70Hz
Grid Connection Form 3L+N+PE
THD <3% (of nominal power)
Battery Input Data
Battery Type Lead-Acid Batteries / Lithium Batteries / User-defined
Number of Battery Input 2
Battery Voltage Range 40V-60V
Max. Grid/Generator Charging Current 330A
Max. Hybrid Charging Current 330A
Max. Discharging Current 330A
Charging Strategy for Li-ion Battery Self-adaption to BMS
PV Input Data
No. Of MPPT Trackers 3
No. of Strings MPPT Tracker 2+2+2
Max. PV Access Power 28000W
Max. PV Input Power 22400W
Max. PV Input Voltage 600V/600V/600V
Start-up Voltage 120V
Max. PV Input Current 40A+40A+40A
Max. Input Short-Circuit Current 50A+50A+50A
MPPT Voltage Range 120V-500V
Grid/Generator Input
Input Voltage Range Phase voltage: 90V-140V, line voltage: 156V-243V
Input Frequency Range 40Hz-70Hz
Max. Bypass Overload Current (Grid) 200A
Efficiency
MPPT Tracking Efficiency 99.0%
Max. Efficiency 97.5%
CEC Efficiency 97%
General Data
Parallel Capacity 1～9 Units
Dimension 860x480x313mm
Weight 59kG
Protection Degree IP65
Temperature -25～60°C, >45°C Derating
Warranty 5 years
Humidity 0～100%
Cooling Method Heat sink + intelligent air cooling
Noise <55dB
Communication RS485/CAN/USB/Dry Contact
External Module (Optional) Wi-Fi/4G Stick
Certifications
UL 1741-2021 (UL1741SB), CSA C22.2 No 107.1-16, IEEE 1547-2018 & 1547a-2020 & 1547.1-2020 (SRD V2.0), UL 1741 CRD-PCS, UL1699B, CEC, SGIP, CSIP
Protection Features
  • PV Lightning Protection
  • Leakage Current Detection
  • Output Overcurrent / Shorted Protection
  • Overvoltage Category: AC type II/DC type III
  • Anti-islanding Protection
  • Insulation Resistor Detection
  • PV Input Reverse Polarity Protection
  • Surge Protection: AC type II/DC type II
