Single Phase Off Grid Inverter
>

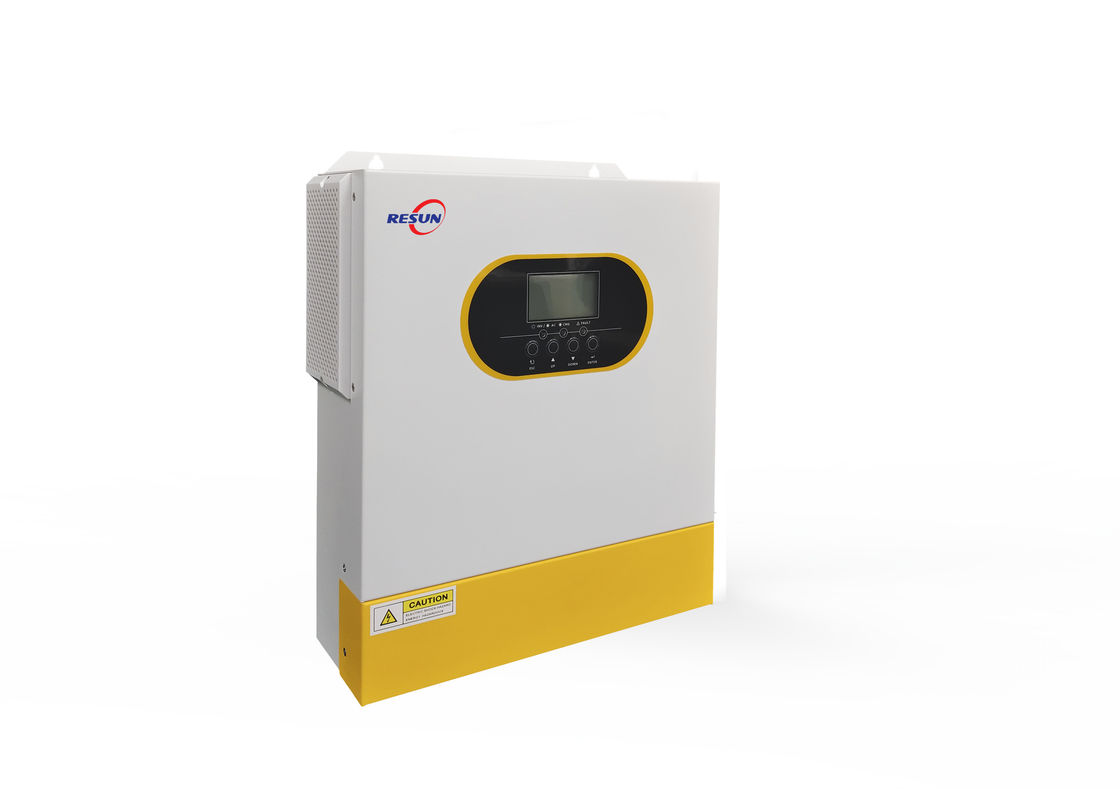

3.5KW Single Phase Off Grid Inverters 24V For Harsh Environments
3.5KW Single Phase Off Grid Inverters 24V For Harsh Environments
  • 3.5KW Single Phase Off Grid Inverters 24V For Harsh Environments
  • 3.5KW Single Phase Off Grid Inverters 24V For Harsh Environments
  • 3.5KW Single Phase Off Grid Inverters 24V For Harsh Environments

3.5KW Single Phase Off Grid Inverters 24V For Harsh Environments

Product Details:
Place of Origin: China
Brand Name: RESUN
Certification: -
Model Number: O-3.5K-LSM
Detail Information
Place of Origin:
China
Brand Name:
RESUN
Certification:
-
Model Number:
O-3.5K-LSM
Model:
O-3.5K-LSM
Power Rating:
3.5KW
Max Efficiency:
96%
Operating Temperature Range:
-10 To 50°C
Battery Compatibility:
Lead-acid / Li-ion / User-defined
Rated Battery Voltage:
24V
Cooling Method:
Heatsink & Intelligent Air Cooling
Input Voltage Range:
50/60Hz
PV INPUT DC Voltage, Current:
60~500Vdc，15A
Communication Interface:
RS232+RS485
Warranty:
18 Months
Highlight:

High Light

Highlight:

3.5KW Single Phase Off Grid Inverters

,

24V Single Phase Off Grid Inverters

,

Harsh Environments Off Grid Inverters

Trading Information
Minimum Order Quantity:
1pcs
Price:
Negotiable
Delivery Time:
3-30days
Payment Terms:
T/T
Supply Ability:
10000
Product Description

3.5KW Off grid inverters suitable for harsh environments

•   Equipped with a sturdy protective shell, it effectively blocks sand and dust intrusion, ensuring the safety of internal circuits. ​
•   Equipped with an intelligent temperature control system, it can continuously and reliably operate through dual fans and honeycomb ducts for heat dissipation, whether in hot deserts or extremely cold polar regions. ​
•   Suitable for harsh environments such as remote mountainous areas, wilderness camps, and island base stations without stable power grids, it is equipped with solar panels or other energy sources to provide stable power supply for local residents' daily life, outdoor work equipment, and communication facilities, ensuring electricity demand.


 Product Features
•   Lithium battery activation function by PV or UtilityCompatible work with lifepo4 battery via Rs485
•   Pure sine wave
•   Capable to work without battery
•   Detachable dustcoverforharsh environmentWiFiremote monitoring optional.
•   Support multiple output priority: UTL,SOL, SBU, SUB


Description

  MODEL O-3.5K-LSM
  Capacity 3.5KVA/3.5KW
  Parallel Capability NO
  Lithium Battery activation YES ( By PV or Utility)
  Lithium Battery communication YES(RS485)
  INPUT
  Nominal Voltage 230VAC
  Acceptable Votage Range 170-280VAC(For personal Computer);90-280vac(For Home Appliances)
  Frequency 50/60 Hz(Auto sensing)
  OUTPUT
  Nominal Voltage 220/230VAC±5%
  Surge Power 7000VA
  Frequency 50/60Hz
  Waveform Pure Sine wave
  Transfer Time 10ms(For personal Computer);20ms(For Home Appliances)
  Peak Efficiency(PV to INV) 96%
  Peak Efficiency(Battery to INV) 93%
  Overload Protection 5s@>=140%load;10s@110%~140%load
  Crest Factor 3:1
  Admissible Power Factor 0.6~1(inductive or capacitive)
  BATTERY
  Battery Voltage 24VDC
  Floating Charge Voltage 27VDC
  OverCharge Protection 33VDC
  Charging Method CC/CV
  Lithium Battery Activation YES(By PV
  Lithim battery Communication YES(RS485)
  SOLAR  CHARGER  &AC  CHARGER
  Solar Charger Type MPPT
  Max.PV Array Power 4000W
  Max.PV Array Open Circuit Voltage 500VDC
  PV Array MPPT Voltage Range 60VDC~500VDC
  Max.Solar Input Current 15A
  Max.Solar Charge Current 100A
  Max.AC Charge Current 80A
  Max.Charge Current(PV+AC) 100A
  PHYSICAL
  Dimensions,DxWxH(mm) 358*295*100
  Package Dimensions,D×WxH(mm) 465*380*175
  Net Weight(Kg) 7
  Communication Interface RS232+RS485
  ENVIRONMENT
  Operating Temperature Range (-10℃ to 50℃)
  Storage Temperature (-15℃~50℃)
  Humidity 5%to 95%Relative Humidity(Non-condensing)
