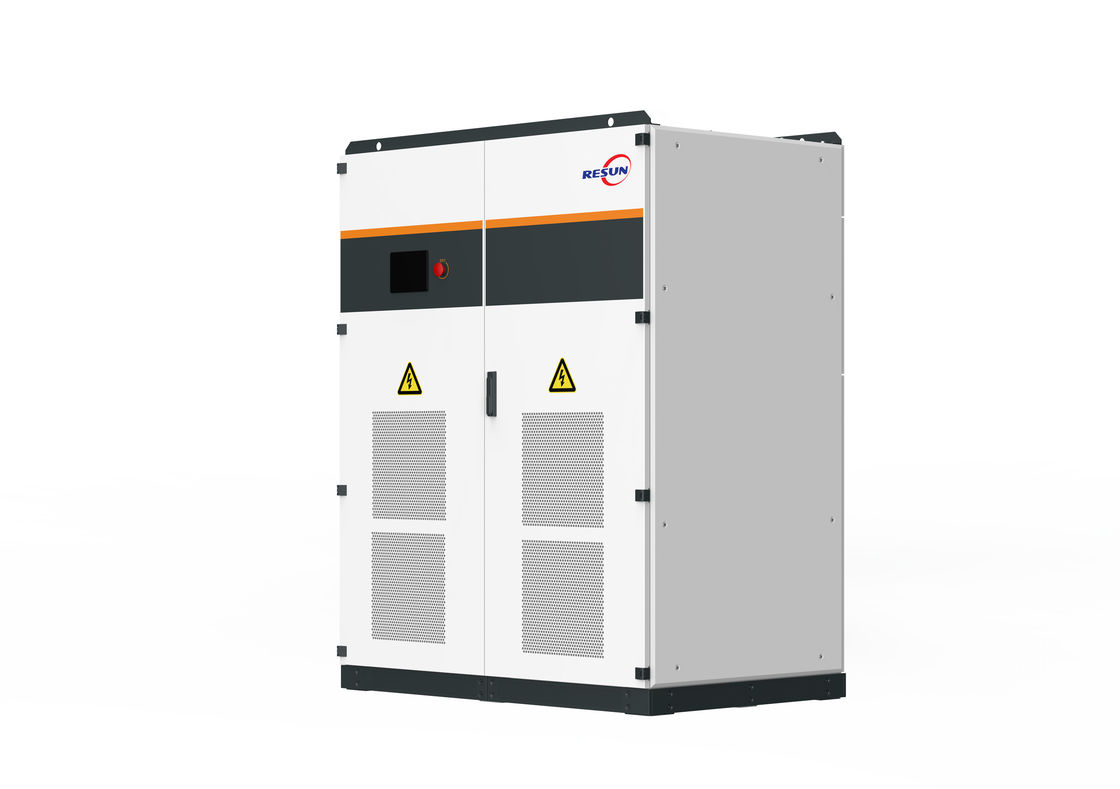

500KW Parallel-Connectable Power Conversion System for Flexible Applications

Name: 500KW Parallel-Connectable Power Conversion System for Flexible Applications
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: PCS-A500-MG
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
Model Number:	PCS-A500-MG

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B

Model Number:

PCS-A500-MG

Model:

PCS-A500-MG

Power Rating:

500KW

Max Efficiency:

97.5%

Operating Temperature Range:

-30 ~ 55℃

Battery Compatibility:

Li-ion / User-defined

Rated Battery Voltage:

500-850V

Cooling Method:

Automatic

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

500-850V

Communication InterfaceInterface:

RS485/Wifi/GPRS/CAN/TCP/IP

Certifications:

IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B

Warranty:

5 Years

Highlight:

High Light

Highlight:

PCS Power Conversion System

500KW Power Conversion System

500KW PCS

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

1000

Product Description

500KW Parallel-Connectable Power Conversion System for Flexible Applications

• Through advanced circuit design and optimized power devices, ultra-high power output can be achieved in a limited space, significantly improving power density and providing ideal solutions for various application scenarios that have strict requirements for space and power.
• Driven by innovative technology, ensuring leading efficiency: By adopting cutting-edge power conversion technology, switching losses and conduction losses can be significantly reduced, resulting in a significant improvement in system efficiency.
• Equipped with reliable isolation function, effectively isolating battery storage units from the power grid. On the one hand, it prevents interference from the grid side from flowing back into the battery system, which affects battery life and performance; On the other hand, when there is an abnormality on the battery side, it prevents the fault from spreading to the power grid and builds a solid defense line for the stable operation of the entire energy storage and conversion system.

KEY STRENGTHS

• Reactive power, active power adjustable.

• Redundant design for auxiliary power supply.

• Built-in isolation transformer, adapt to impact load.

• Supports parallel connection of multiple machines.

Description

Model	PCS-A500-MG
DC(battery)
Voltage range (V)	500~850
Max. current (A)	1128
AC(on-grid)
Max. output power (kW)	550
Rated output power (kW)	500
Rated voltage (V)	400
Voltage range (V)	320~460
Rated current (A)	722
Max. output current (A)	794
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55 / 55~65
THDi	<3%
Power factor	1leading~1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Rated voltage (V)	400
THDu	<1% Linear ＜5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term
General data
Max. efﬁciency	97.5%
Ingress protection	IP21
Noise emission (dB)	<70
Operating temperature (℃)	-30 ～ +55
Cooling	Forced air
Relative humidity	0 ~95% non-condensing
Max. operating altitude (m)	5,000(>3,000 derating)
*Dimension WDH (mm)*	*160010502050*
Weight(kg)	2665
Self-consumption	<0.5%
On/ off grid switching	Automatic
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certiﬁcates	IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017 ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B
