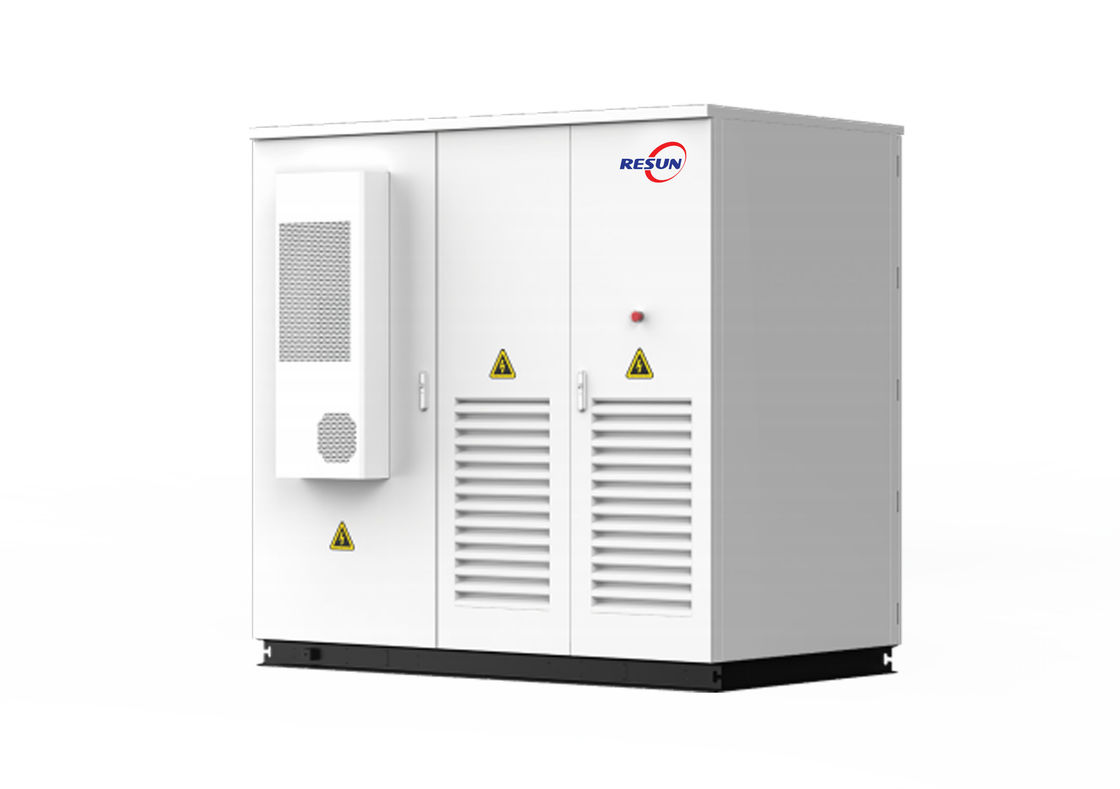

30KW Takino Energy Storage Cabinet IP54 with Touch LCD display

Name: 30KW Takino Energy Storage Cabinet IP54 with Touch LCD display
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: A-30KTH
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	-
Model Number:	A-30KTH

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

Model Number:

A-30KTH

Model:

A-30KTH

Rated Power (kW):

Rated Energy (kWh):

55.296

Warranty:

3 Years

Dimensions(mm):

1,780×1,520×2,290

IP Rating:

IP54

Number Of Battery Cycles:

≥3,800

Weight (kg):

2,000

Display:

Touch LCD Display+cloud Platform

Highlight:

High Light

Highlight:

Takino Energy Storage Cabinet

30KW Energy Storage Cabinet

Energy Storage Cabinet IP54

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

30KW Takino Energy Storage Cabinet

•   Weather resistant alloy body, resistant to wind, sand, rain, and snow erosion, combined with seismic and moisture-proof structure, stable operation in outdoor scenes; The core module of Jingneng continuously outputs strong electricity, ensuring reliable power supply.
•   Durable body suitable for extreme environments; Innovative energy storage architecture for large capacity electricity storage, intelligent power regulation compatible with small appliances and electric tools.
•   Support modular rapid expansion, exclusive storage technology improves efficiency by over 30%, stable power supply in low-temperature environments, and drives outdoor electricity demand with high efficiency performance.

KEY STRENGTHS

• Support flexible expansion of PV capacity.

• Support battery capacity and discharge time prediction.

• Integrated EMS function, safe and stable.

• Built-in isolation transformer has strong load adaptability.

• Support simultaneous access to load, battery, grid, DG, and PV.

Description

Model		A-30KTH
AC data
Rated power (kW)		30
Rated voltage (V)		400
Rated current (A)		43
Voltage range (V)		320V-460V
Rated frequency (Hz)		50/60
Frequency Range (Hz)		45-55 / 55-65
THDi (on-grid)		<3%
THDu (off-grid)		≤ 1% linear; ≤ 5% non-linear
Power factor		1leading~1lagging(settable)
Overload capacity		110% long-term
Grid type		3W+N+PE
Isolation transformer		100/400
On / off-grid switching		Support
PV data
Max. PV input voltage (V)		1,000
Max. PV power (kW)		36/72
MPPT operating voltage range (V)		250~850
Buck-boost mode		Support
Battery data
Cell type		3.2V/120Ah/LFP
Rated voltage (V)		460.8V,1P144S
Rated energy (kWh)		55.296
Operating voltage range (V)		403.2~511.2
Max. charge and discharge rate		1C@25℃
Number of battery cycles		≥3,800
General data
Dimensions W D H (mm)		1,780×1,520×2,290
Weight (kg)		2,000
Operating temperature (℃)		0 ～ +45
Relative humidity		0 ~95%(non-condensing)
Ingress protection		IP54
Noise emission (dB)		<75
Max. operating altitude (m)		5,000(>3,000 derating)
Cooling		Intelligent air cooling
Fire extinguishing system		Aerosols/NOVEC1230(optional)
Display		Touch LCD display+cloud platform
EMS communication		RS485, TCP/IP
