500KW Microgrid Energy Storage System Energy Gathering Container

Name: 500KW Microgrid Energy Storage System Energy Gathering Container
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: A-500KTH-1000
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	-
Model Number:	A-500KTH-1000

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

Model Number:

A-500KTH-1000

Model:

A-500KTH-1000

Rated Power (kW):

500

Rated Energy (kWh):

1075.2

Warranty:

3 Years

Dimensions(mm):

6,058×2,438×2,896

IP Rating:

IP54

Number Of Battery Cycles:

≥6,000

Weight (kg):

21,000

Display:

Touch LCD Display+cloud Platform

Highlight:

High Light

Highlight:

500KW Microgrid Energy Storage System

Microgrid Energy Storage System

Microgrid Energy Storage Container

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

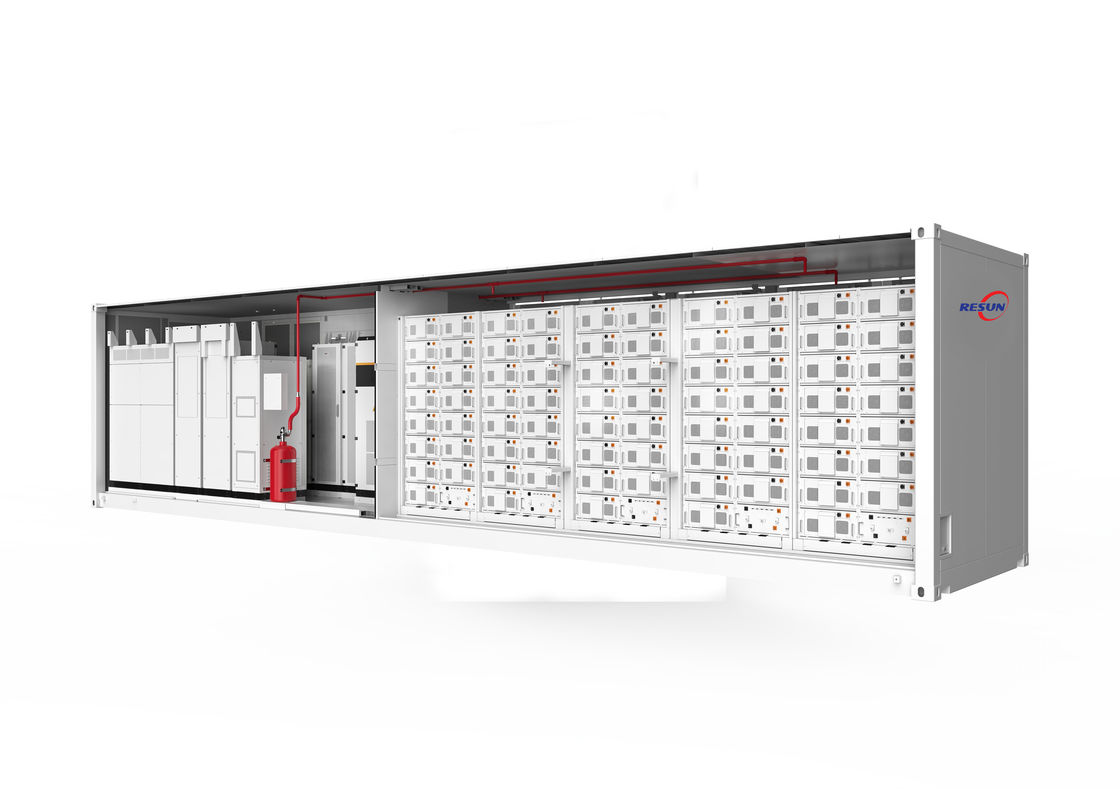

500KW Energy gathering container energy storage system

•   The energy storage system of the energy gathering container adopts modular design, which can be flexibly combined and expanded. The large capacity energy storage units achieve efficient energy aggregation and meet the large-scale power storage needs. ​
•   The containerized structure has high integration and is suitable for complex outdoor environments. The energy gathering core technology improves the charging and discharging efficiency, providing stable energy support for power grid peak shaving and industrial energy storage. ​
•   The system supports intelligent energy management and real-time monitoring of energy storage status. Combined with the convenient transportation characteristics of containers, it can be quickly deployed in industrial parks, new energy power stations, and other scenarios.

KEY STRENGTHS

• Multiple working modes can be flexibly set.

• Support real-time online monitoring of system status.

• Support battery management system and comprehensive thermal management.

• Support simultaneous access to load, battery, grid, DG, and PV.

• The electrical compartment and battery compartment are separated, preventing the spread of thermal runaway.

• Integrated design, easy to transport and install, flexible deployment.

Description

Model				A-500KTH-1000
AC data
Rated power (kW)				500
Rated voltage (V)				400
Rated current (A)				722
Voltage range (V)				320-460
Rated frequency(Hz)				50/60
Frequency range(Hz)				45-55 / 55-65
THDi (on-grid)				<3%
THDu (off-grid)				≤ 1% linear; ≤ 5% non-linear
Power factor				1leading~1lagging(settable)
Overload capacity				110% long-term
AC output				3W+N+PE
Isolation transformer				315/400
On / off-grid switching				Support
PV data
Max. PV input voltage (V)				1,000
Max. PV power (kW)				600/660/720
MPPT operating voltage range (V)				250~850
Buck-boost mode				Support
Battery data
Cell type				3.2V/280Ah/LFP
Nominal voltage(V)				768V/1P240S
Nominal energy (MWh)				1.0752
Working voltage range (V)				672~850V
Max. charge and discharge rate				0.5C@25℃
Number of battery cycles				≥6,000
System data
System speciﬁcation				500kW/1,075.2kWh (1000kWh)
*Dimensions W D H (mm)*				6,058×2,438×2,896
Net weight (kg)				21,000
Operating temperature (℃)				0 ～ +45
Relative humidity				0 ~95%(non-condensing)
Ingress protection				IP54
Noise emission (dB)				<75
Max. operating altitude (m)				5,000(>3,000 derating)
Cooling				Intelligent air cooling
Fire extinguishing system				FM200/NOVEC1230(optional)
Display				7” device display +10” EMS display +10” BMS display (conﬁgurable)
EMS communication				RS485, TCP/IP
