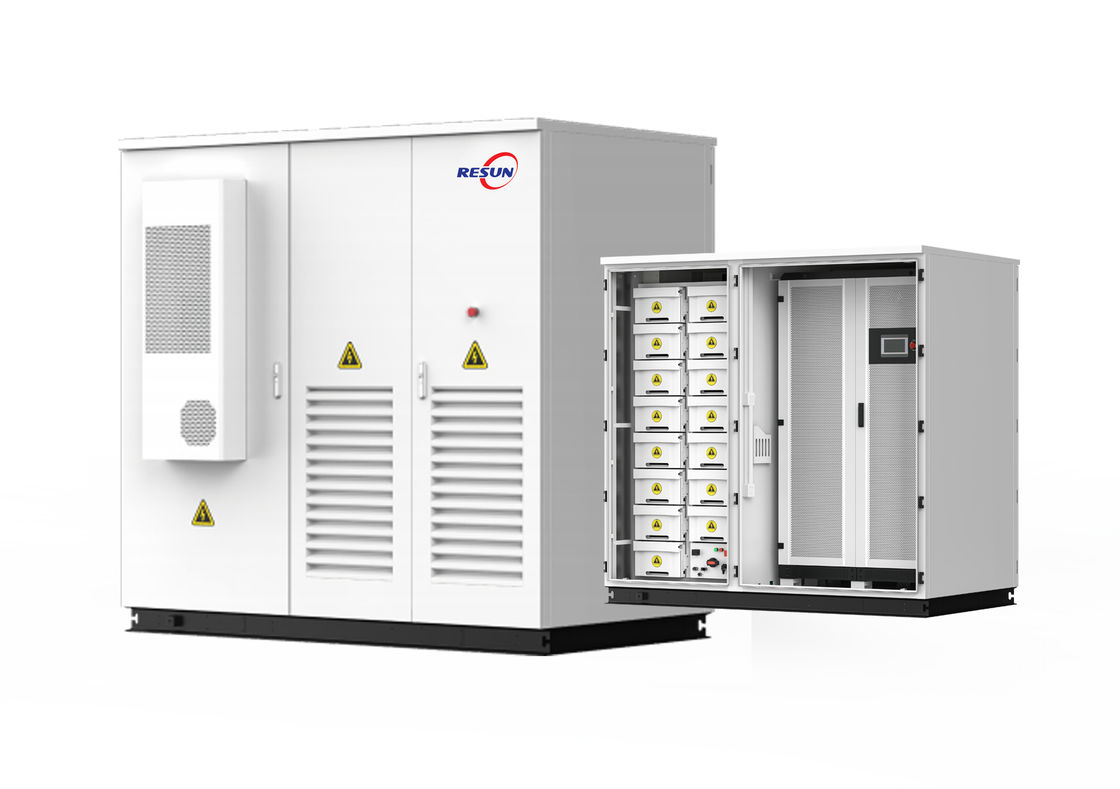

50KW Long Term Energy Storage Cabinet Impact Resistant IP54

Name: 50KW Long Term Energy Storage Cabinet Impact Resistant IP54
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: A-50KTH-55
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	-
Model Number:	A-50KTH-55

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

Model Number:

A-50KTH-55

Model:

A-50KTH-55

Rated Power (kW):

Rated Energy (kWh):

55.296

Warranty:

3 Years

Dimensions(mm):

1,780×1,520×2,290

IP Rating:

IP54

Number Of Battery Cycles:

≥3,800

Weight (kg):

2,200

Display:

Touch LCD Display+cloud Platform

Highlight:

High Light

Highlight:

50KW Energy Storage Cabinet

Impact Resistant Energy Storage Cabinet

IP54 Energy Storage Cabinet

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

50KW Fengxing Long term Energy Cabinet

•   The impact resistant material of the body resists complex environments, and the long-term energy storage core module achieves over 10 hours of continuous power supply, making outdoor electricity use worry free.
•   The breakthrough power of the scene and the long-lasting energy durability, the intelligent temperature control system ensures stable operation under extreme temperatures, and the large capacity energy storage architecture can simultaneously supply power to multiple devices, suitable for long-term electricity consumption scenarios such as camping and engineering.
•   By adopting low loss energy management technology, the charging and discharging efficiency has been improved by 25%. Coupled with modular storage units to support capacity expansion, "long-term endurance+strong output" has become a reliable guarantee for outdoor energy supply.

KEY STRENGTHS

• Support flexible expansion of PV capacity.

• Integrated EMS function, safe and stable.

• Support simultaneous access to load, battery, grid, DG, and PV.

• Support battery capacity and discharge time prediction.

Description

Model		A-50KTH-55
AC data
Rated power (kW)		50
Rated voltage (V)		400
Rated current (A)		72
Voltage range (V)		320V-460V
Rated frequency (Hz)		50/60
Frequency Range (Hz)		45-55 / 55-65
THDi (on-grid)		<3%
THDu (off-grid)		≤ 1% linear; ≤ 5% non-linear
Power factor		1leading~1lagging(settable)
Overload capacity		110% long-term
Grid type		3W+N+PE
Isolation transformer		200/400
On / off-grid switching		Support
PV data
Max. PV input voltage (V)		1,000
Max. PV power (kW)		60/120
MPPT operating voltage range (V)		250~850
Buck-boost mode		Support
Battery data
Cell type		3.2V/120Ah/LFP
Rated voltage (V)		460.8V,1P144S
Rated energy (kWh)		55.296
Operating voltage range (V)		403.2~511.2
Max. charge and discharge rate		1C@25℃
Number of battery cycles		≥3,800
General data
*Dimensions W D H (mm)*		1,780×1,520×2,290
Weight (kg)		2,200
Operating temperature (℃)		0 ～ +45
Relative humidity		0 ~95%(non-condensing)
Ingress protection		IP54
Noise emission (dB)		<75
Max. operating altitude (m)		5,000(>3,000 derating)
Cooling		Intelligent air cooling
Fire extinguishing system		Aerosols/NOVEC1230(optional)
Display		Touch LCD display+cloud platform
EMS communication		RS485, TCP/IP
