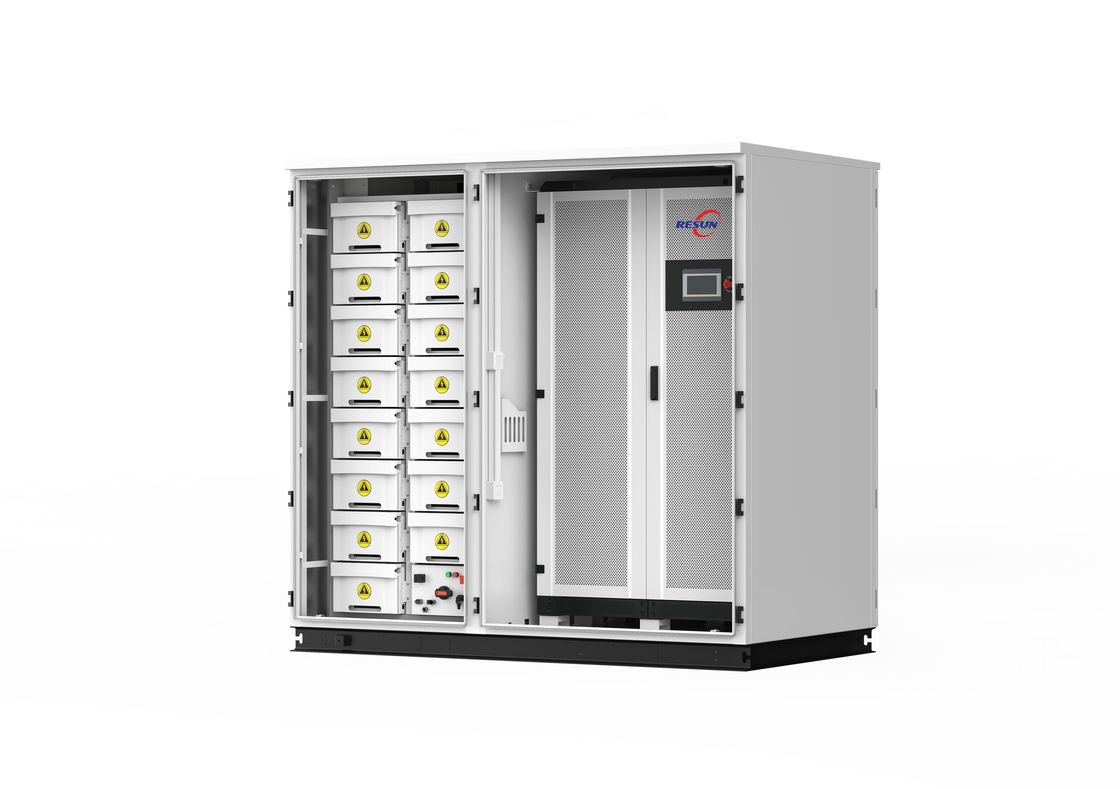

50KW Microgrid Energy Storage System with Integrated EMS function

Name: 50KW Microgrid Energy Storage System with Integrated EMS function
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: A-50KTH-100
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	-
Model Number:	A-50KTH-100

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

Model Number:

A-50KTH-100

Model:

A-50KTH-100

Rated Power (kW):

Rated Energy (kWh):

100.352

Warranty:

3 Years

Dimensions(mm):

1,780×1,520×2,290

IP Rating:

IP54

Number Of Battery Cycles:

≥6,000

Weight (kg):

2,400

Display:

Touch LCD Display+cloud Platform

Highlight:

High Light

Highlight:

50KW Microgrid Energy Storage System

EMS Microgrid Energy Storage System

50KW Energy Storage Cabinet

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

50KW Zhengtu Hengneng Energy Storage Cabinet

•   Adopting a high stability energy storage architecture, it can achieve long-term continuous power supply, meet the long-distance electricity needs of RV travel, field exploration, etc., and ensure uninterrupted power supply on the journey. ​
•  Equipped with an intelligent energy management system, it optimizes power output efficiency and maintains stable power supply in long-distance outdoor environments, providing reliable energy guarantee for users' journey. ​
•  Cooperate with low loss power storage technology to reduce energy loss and achieve long-lasting energy supply. It is designed for long-distance outdoor environments, adapting to various complex road conditions and climates, and is the energy guardian of long-distance journeys.

KEY STRENGTHS

• Integrated EMS function, safe and stable.

• Support simultaneous access to load, battery, grid, DG, and PV.

• Support battery capacity and discharge time prediction.

Description

Model		A-50KTH-100
AC data
Rated power (kW)		50
Rated voltage (V)		400
Rated current (A)		72
Voltage range (V)		320V-460V
Rated frequency (Hz)		50/60
Frequency Range (Hz)		45-55 / 55-65
THDi (on-grid)		<3%
THDu (off-grid)		≤ 1% linear; ≤ 5% non-linear
Power factor		1leading~1lagging(settable)
Overload capacity		110% long-term
Grid type		3W+N+PE
Isolation transformer		200/400
On / off-grid switching		Support
PV data
Max. PV input voltage (V)		1,000
Max. PV power (kW)		60/120
MPPT operating voltage range (V)		250~850
Buck-boost mode		Support
Battery data
Cell type		3.2V/120Ah/LFP
Rated voltage (V)		358.4V,1P112S
Rated energy (kWh)		100.352
Operating voltage range (V)		319.2~397.6
Max. charge and discharge rate		0.5C@25℃
Number of battery cycles		≥6,000
General data
*Dimensions W D H (mm)*		1,780×1,585×2,290
Weight (kg)		2,400
Operating temperature (℃)		0 ～ +45
Relative humidity		0 ~95%(non-condensing)
Ingress protection		IP54
Noise emission (dB)		<75
Max. operating altitude (m)		5,000(>3,000 derating)
Cooling		Intelligent air cooling
Fire extinguishing system		Aerosols/NOVEC1230(optional)
Display		Touch LCD display+cloud platform
EMS communication		RS485, TCP/IP
