Home > products >

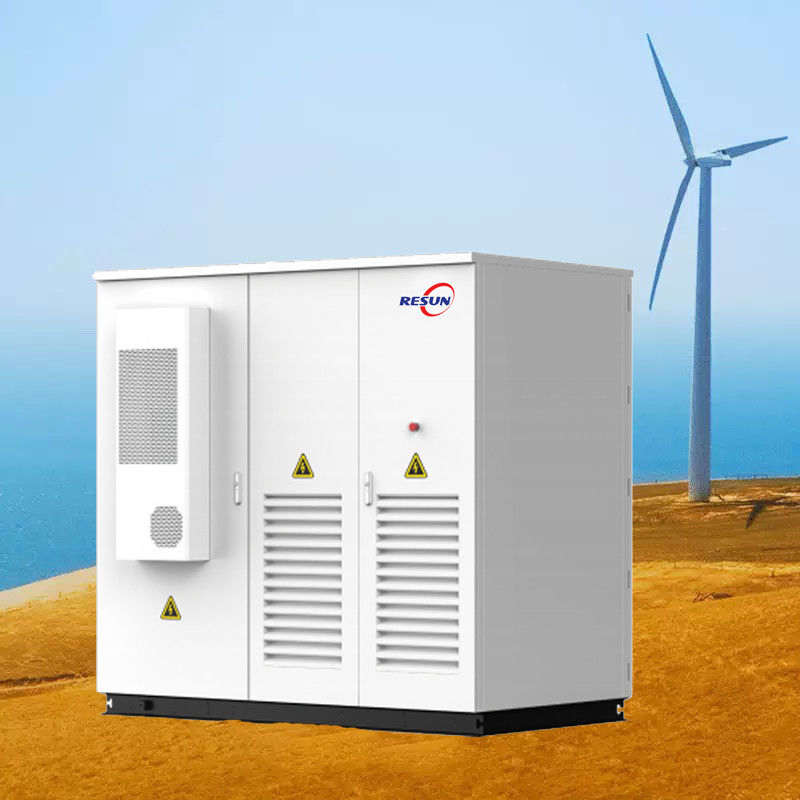

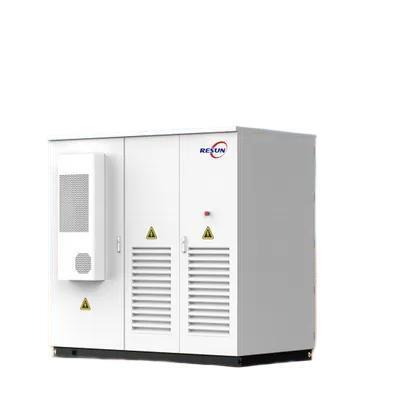

100KW LFP Energy Storage Cabinet With 215KWH Battery System

Name: 100KW LFP Energy Storage Cabinet With 215KWH Battery System
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: A-100KTH-215
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	-
Model Number:	A-100KTH-215

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

Model Number:

A-100KTH-215

Model:

A-100KTH-215

Rated Power (kW):

100

Rated Energy (kWh):

215.04

Warranty:

3 Years

Dimensions(mm):

2,460×1,560×2,425

IP Rating:

IP54

Number Of Battery Cycles:

≥6,000

Weight (kg):

3,900

Display:

Touch LCD Display+cloud Platform

Highlight:

High Light

Highlight:

100KW Energy Storage Cabinet

215KWH Energy Storage Cabinet

215KWH Energy Storage Battery System

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

1000

Product Description

100KW Energy Storage Cabinet With 215KWH Battery System

•   The 100KW Xingye instantaneous charging energy storage cabinet is based on a high power of 100 kilowatts and is equipped with instantaneous charging technology to quickly replenish energy for equipment and meet outdoor high-power electricity needs. Its starry sky design is suitable for various outdoor scenarios, allowing users to enjoy a convenient charging experience even in the wilderness. ​
•   This energy storage cabinet has both 100KW high-power output and instantaneous charging capability, which can complete charging in a short time and reduce waiting time. The integration of starry elements makes it not only an energy storage device, but also a scenic spot in outdoor scenes, adding convenience and beauty to users' outdoor life. ​
•   The 100KW Xingye instantaneous charging energy storage cabinet adopts advanced technology to achieve high-power instantaneous charging of 100 kilowatts, providing strong support for outdoor electricity consumption. It is designed for outdoor environments and has good adaptability. Whether it is camping, fieldwork, or other outdoor scenes, it can work stably and efficiently.

KEY STRENGTHS

• Support flexible expansion of PV capacity.

• Integrated EMS function, safe and stable.

• Support simultaneous access to load, battery, grid, DG, and PV.

• Areas without electricity(power shortage)

Description

Model		A-100KTH-215
AC data
Rated power (kW)		100
Rated voltage (V)		400
Rated current (A)		144
Voltage range (V)		320V-460V
Rated frequency (Hz)		50/60
Frequency Range (Hz)		45-55 / 55-65
THDi (on-grid)		<3%
THDu (off-grid)		≤ 1% linear; ≤ 5% non-linear
Power factor		1leading~1lagging(settable)
Overload capacity		110% long-term
Grid type		3W+N+PE
Isolation transformer		270/400
On / off-grid switching		Support
PV data
Max. PV input voltage (V)		1,000
Max. PV power (kW)		120/180/240
MPPT operating voltage range (V)		250~850
Buck-boost mode		Support
Battery data
Cell type		3.2V/280Ah/LFP
Rated voltage (V)		768V,1P240S
Rated energy (kWh)		215.04
Operating voltage range (V)		672~850
Max. charge and discharge rate		0.5C@25℃
Number of battery cycles		≥6000
General data
*Dimensions W D H (mm)*		2,460×1,560×2,425
Weight (kg)		3,900
Operating temperature (℃)		0 ～ +45
Relative humidity		0 ~95%(non-condensing)
Ingress protection		IP54
Noise emission (dB)		<75
Max. operating altitude (m)		5,000(>3,000 derating)
Cooling		Intelligent air cooling
Fire extinguishing system		Aerosols/NOVEC1230(optional)
Display		Touch LCD display+cloud platform
EMS communication		RS485, TCP/IP
