1000KW Intelligent Energy Storage Container With RS485 EMS Communication

Name: 1000KW Intelligent Energy Storage Container With RS485 EMS Communication
Brand: Shenzhen Resun energy Technology Co., Ltd
SKU: A-1000KTH-2000
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	-
Model Number:	A-1000KTH-2000

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

Model Number:

A-1000KTH-2000

Model:

A-1000KTH-2000

Rated Power (kW):

1000

Rated Energy (kWh):

21,504

Warranty:

3 Years

Dimensions(mm):

12,192×2,438×2,896

IP Rating:

IP54

Number Of Battery Cycles:

≥6,000

Weight (kg):

38,000

Display:

Touch LCD Display+cloud Platform

Highlight:

High Light

Highlight:

Intelligent Energy Storage Container

1000KW Energy Storage Container

RS485 Energy Storage System

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

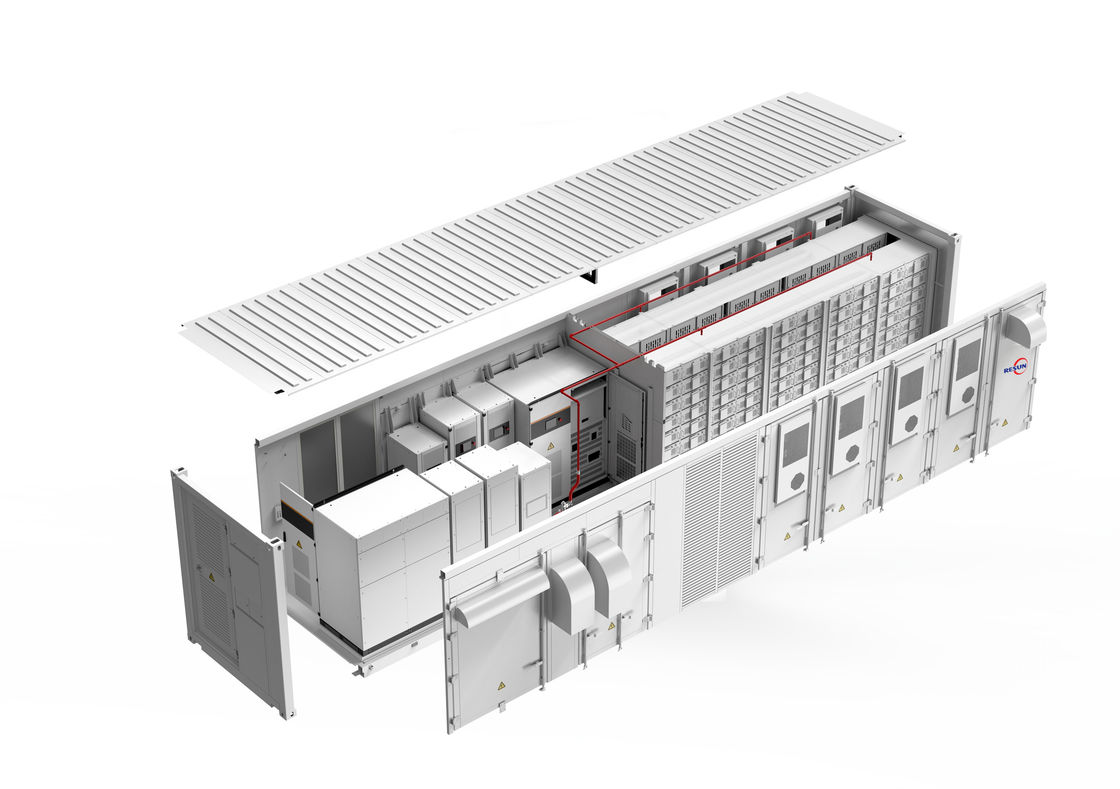

1000KW Intelligent storage container energy storage system

•   Modular integration, easy deployment: The battery pack, inverter, management system, etc. are integrated into standard containers for easy transportation, quick installation, and simple module maintenance and disassembly. ​
•   Efficient and Long Lifespan: Equipped with high-energy density lithium batteries, intelligent liquid cooling and precise temperature control, the battery cycle life is increased by 30%, with cell cycles reaching 6000 times and high system conversion efficiency. ​
•   Multi scenario adaptation: It can be used as a backup power source for the power grid, supplying power to remote areas, with high protection level and strong anti-corrosion ability, and can operate stably in harsh environments.

KEY STRENGTHS

• Multiple working modes can be flexibly set.

• Support real-time online monitoring of system status.

• Support simultaneous access to load, battery, grid, DG, and PV.

• The electrical compartment and battery compartment are separated, preventing the spread of thermal runaway.

• Integrated design, easy to transport and install, flexible deployment.

Description

Model				A-1000KTH-2000
AC data
Rated power (kW)				1000
Rated voltage (V)				400
Rated current (A)				1445
Voltage range (V)				320-460
Rated frequency(Hz)				50/60
Frequency range(Hz)				45-55 / 55-65
THDi (on-grid)				<3%
THDu (off-grid)				≤ 1% linear; ≤ 5% non-linear
Power factor				1leading~1lagging(settable)
Overload capacity				110% long-term
AC output				3W+N+PE
Isolation transformer				315/400
On / off-grid switching				Support
PV data
Max. PV input voltage (V)				1,000
Max. PV power (kW)				1200/1320/1440
MPPT operating voltage range (V)				250~850
Buck-boost mode				Support
Battery data
Cell type				3.2V/280Ah/LFP
Nominal voltage(V)				768V/1P240S
Nominal energy (MWh)				2.1504
Working voltage range (V)				672~850V
Max. charge and discharge rate				0.5C@25℃
Number of battery cycles				≥6,000
System data
System speciﬁcation				1,000kW/2,150.4kWh (2000kWh)
*Dimensions W D H (mm)*				12,192×2,438×2,896
Net weight (kg)				38,000
Operating temperature (℃)				0 ～ +45
Relative humidity				0 ~95%(non-condensing)
Ingress protection				IP54
Noise emission (dB)				<75
Max. operating altitude (m)				5,000(>3,000 derating)
Cooling				Intelligent air cooling
Fire extinguishing system				FM200/NOVEC1230(optional)
Display				7” device display +10” EMS display +10” BMS display (conﬁgurable)
EMS communication				RS485, TCP/IP
