Split Phase Hybrid Inverter

>

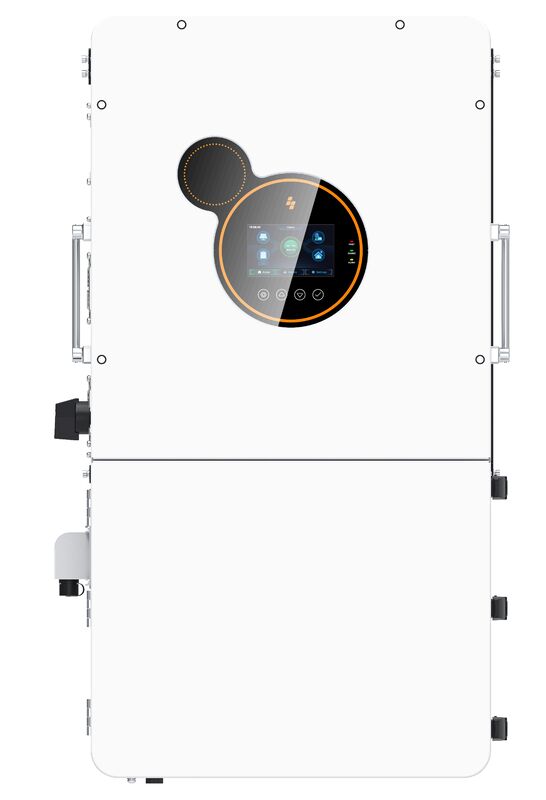

12kw split-hybrid inverter 6HP motor load IP65 -25~60℃ operating temp

12kw split-hybrid inverter 6HP motor load IP65 -25~60℃ operating temp

12kw split-hybrid inverter 6HP motor load IP65 -25~60℃ operating temp

Product Details:

Place of Origin:	China
Brand Name:	RESUN
Certification:	FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)
Model Number:	R-16KUS

Detail Information

Place of Origin:

China

Brand Name:

RESUN

Certification:

FCC Part 15 Class B; UL1741,UL1741SA&SB all options, UL1699B, CSA -C22.2 NO.107.1-01,RSD(NEC690.5,11,12)

Model Number:

R-16KUS

Model:

R-16KUS

Power Rating:

16KW

Max Efficiency:

98%

Operating Temperature Range:

-25 ~ 60℃

Battery Compatibility:

Li-ion / User-defined

Rated Battery Voltage:

48V

Cooling Method:

Fan Cooling

Input Voltage Range:

50/60Hz

PV INPUT DC Voltage, Current:

120-500V, 4*20A

Communication InterfaceInterface:

RS485, 4G(optional), Wi-Fi

Certifications:

FCC Part 15 Class B; UL1741SA All Options, UL1699B, CSA 22.2; IEEE1547

Warranty:

5 Years

Highlight:

High Light

Highlight:

12kw split hybrid inverter

,

6HP motor load inverter

,

IP65 split phase inverter

Trading Information

Minimum Order Quantity:

1pcs

Price:

Negotiable

Delivery Time:

3-30days

Payment Terms:

T/T

Supply Ability:

10000

Product Description

12kW Split-Hybrid Inverter with 6HP Motor Load

This industrial-grade 12kW split-hybrid inverter supports 6HP motor loads, delivering 120/240VAC pure sine wave power for safe operation of heavy equipment. With IP65 protection, it's suitable for both indoor and outdoor use, operating reliably from -25°C to 60°C. Compatible with Li-ion, lead-acid, and user-defined 48V batteries, it offers 240A maximum hybrid charging and peak-valley cost savings.

Key Strengths

Outputs high-quality pure sine wave AC power
IP65 protection rating for durability
Industrial design with modern aesthetic appearance
Easy to install and simple to operate
Exclusive Li-ion battery BMS dual activation

Technical Specifications

Inverter Output
Model	RO-10KUS
Rated Output Power	@240V 12000W @208V 10400W
Max. Peak Power	1.5 times rated power @10S 2 times rated power @0.5S
Rated Output Voltage	120/240Vac (Split-phase) 120/208V (Three-phase)
Max. Continuous Output Current	50A
Load Motor Capacity	6HP
Locked Rotor Amps (LRA)	123A (Ipeak)
Rated AC Frequency	50/60Hz
Waveform	Pure Sine Wave
Parallel Capacity	1 to 6 units (2 or more units can form a three-phase output)
Battery
Battery Type	Li-ion / Lead-Acid / User Defined
Rated Battery Voltage	48Vdc
Battery Voltage Range	40 ~ 60Vdc
Max. Grid Charging Current	200A
Max. Generator Charging Current	90A
Max. Hybrid Charging Current	240A
PV Input
No. of MPPT Trackers	2
Max. PV Array Power	9000W + 9000W
Max. PV Input Current	32A + 32A
Short-Circuit Current Isc	40A + 40A
Max. Open Circuit Voltage	550Vdc / 550Vdc
MPPT Voltage Range	125 ~ 450Vdc / 125 ~ 450Vdc
Grid / Generator Input
Input Voltage Range	90 ~ 140Vac
Input Frequency Range	50Hz / 60Hz
Continuous Grid Pass through Current	200A
Efficiency
MPPT Tracking Efficiency	99.9%
Max. Efficiency	97.5%
CEC Efficiency	96.5%
Communication
Communication Port	RS485 / CAN / USB / Dry contact
External Modules	Wi-Fi / GPRS (Optional)
Basic Data
Dimensions	840 × 440 × 260mm
Weight	48kg
Protection Degree	IP65
Operating Temperature Range	-25°C to 60°C, >45°C derated
Noise	<60dB
Self-consumption	<100W
Cooling Method	Heat sink + intelligent fan cooling
Certified Specifications
Safety Standards	UL1741 & IEEE1547.1-2020, CEC, RULE 21, HECO
EMC	FCC 15 class B
RoHS	Yes
